DESCRIPTION

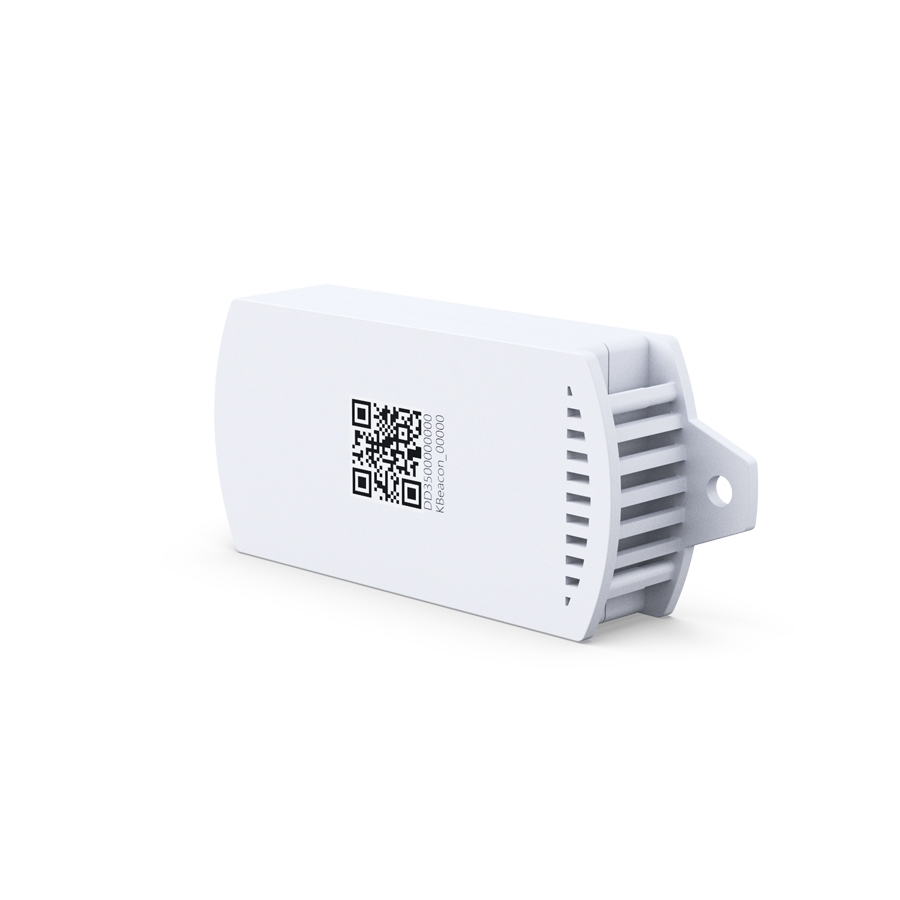

K6 Sensor Beacon is a precise temperature & humidity indicator sensor and data logger with Bluetooth® 5.0 support. It broadcast the environmental temperature and humidity data via Bluetooth.
It support extended probe, which is fit for sealed environment. It can also support customizing with different sensor, such as CO2, Gas and etc.
By connecting to smartphone App via Blueooth® or KGateway gateway, it can upload temperature and humidity data to local server or remote cloud platform, and you can use KGateway to configure/set the parameter of K6 beacon.
With high quality integrated digital temperature and humidity chip sensor, K6 has advantage of long-term stability, low latency and ability to resist chemical contamination.
K6 has up to 8 years battery life, it supports working in ultrl-low and high temperature environment, it’s splash resistence IP63, fit different usage environment. It support iBeacon, Eddystone (UID, URL, TLM), KSensor broadcast at the same time. All the parameters of this product can be modified via configuration App.
FEATURES
Precise temperature & humidity realtime monitoring
Ultra-low power consumption chipset
Support iBeacon, Eddystone advertisements simultaneously
Firmware update Over The Air (OTA)
Logo and color customizable
Provided with your own configuration
100% Configurable Parameters via app (Android & iOS) & gateway
DOWNLOAD
Additional Motion sensors available
Compatible with iBeacon and Eddystone (UID, URL, TLM) at the same time.
All the parameters of this product can be modified via configure APP.
Usage ScenarioS
The K6 temperature and humidity beacon can monitor and track the pharmacy logistic, warehouse and etc, and provide full monitoring and control for the whole environment.
The K6 beacon can also work with our KGateway (with LTE&GPS), providing real-time temperature monitoring and location tracking in the food supply chain, cold chain transportation, drug logistics.
PRODUCT DETAILS
SPECIFICATIONS
| Material for shell | ABS |
| Color | Black, White(Other colors can be customized) |
| Size | 94mm*38mm*18mm |
| Weight | 42g |
| Accessory | N/A |
| Battery | 3.6V 2600mAh ER14505 Lithium battery |
| Battery life | Up to 8 year (Base on Broadcast Interval 1s and TX power 0dBm) |
| Waterproof level | IP63 |
| Main Features | |
| Support Protocol | ◆Apple iBeacon ◆Eddystone URL ◆Eddystone UID ◆Eddystone TLM ◆Ksensor |
| OTA | YES |
| Button | YES |
| LED | N/A |
| Sensor | Temperature-Humidity sensor: +/-0.3℃, -40℃~70℃ Accelerometer: optional |
| Rechargeable | No |
| Programmable parameters | ◆Tx Power/Advtisement period/Lock password； ◆iBeacon UUID/Major/Mior； ◆Compatible with Eddystone，URL，UID(NamespaceID, SerialID |
| Buzzer | N/A |
| Others | ◆Support Non connection advertisment Mode ◆Support Configruation advertisment Mode |
| Physical features | |
| Chipset | nRF528XX serie |
| Tx Power | -40 ~ 4dBm |
| BLE | BLE5.0 Supportable(High throughput, Advertising Ext, Improved coexistence) |
| Wireless Frequency Band | 2.4GHz |
| Transmitting range | ◆BLE4.0/BLE5.0 ~ 100m *The range depends on physical environment. |
| Powered by | ER14505 Lithium battery |
| Display way | Beacon Gateway or via Phone App |
| Beacon Factory Default Setting | |
| iBeacon | ◆UUID: 0x7777772E-6B6B-6D63-6E2E-636F6D000001 ◆MajorID:0x0001 ◆MinorID: 0x0001 |
| Tx Power | 0dBm |
| Broadcast interval | 1000ms |
| Eddystone UID | ◆Namespace ID: 6B6B6D636E2E636FD01 ◆InstanceID ID:0x000000000001 |
| Eddystone URL | URL: www.kkmcn.com |
| Eddystone TLM | ◆Battery voltage; ◆Temperature; ◆Advertisements count/Time since power-up |
| Default Lock Code | 16Byte Lock Code: ◆0x3030303030303030303030303030303030303030 |
| Working environment | |
| Working temperature | -40℃~+70℃ |
| Storage temperature | 10℃~+25℃，≤65%RH |
