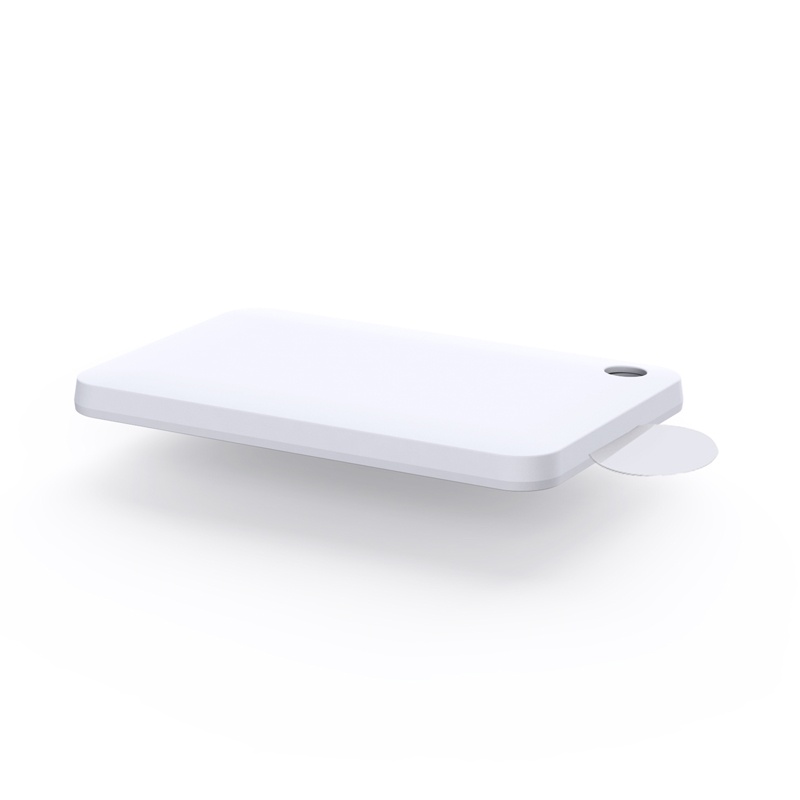

Ultra thin Bluetooth Beacon K17


Thin Beacon K17
● Ultra-Small size 37.6*24*3.5mm, portable and light, very convenient to carry.
● Replaceable CR2016 coin battery, battery life is 8 months,
● With accelerometer sensor optional
● Attach as keychain or adhesive to asset
● Ultra-low power BLE5.0 chipset Nordic nRF52 series
●  Support iBeacon/ Eddystone/KSensor simultaneously

K17 BLE thin Beacon is a ultra small size and thin Beacon with ultra low power chipset Nordic nRF52 series and BLE 5.0 technology.
It has a portable case shape. With keychain hole, K17 small & thin Beacon can easily be attached to other objects, it is designed for personal tracking, empolyee check-in system, warehouse tracking, pallet tracking and other indoor location- based service.
K17 thin Beacon broadcasts 2. 4GHz radio signals at regular and adjustable intervals. K17 Bluetooth Ultra Thin Beacon can be heard and interpreted by iOS and Android BLE-enabled devices that are equipped with many mobile apps.


Bluetooth Low Energy

Ultra-low power consumption chipset

Support iBeacon, Eddystone advertisements simultaneously

Firmware update Over The Air (OTA)

Logo and color customizable

Provided with your own configuration

100% Configurable Parameters via KGateway or app (Android & iOS)


Ultra small size Bluetooth thin beacon
Portable with keychain
Small and thin size to attach
Compatible with iBeacon, Eddystone (UID, URL, TLM) and KSensor simultaneously
Small beacon designed perfectly for personal tracking solution, indoor tracking/navigation solution, pallet tracking solutions and etc
All the parameters of this product can be modified via configure APP.



Material for shellABS
Weight7g (with battery)
Accessory3M sticker
Battery life10 Months
Waterproof levelIP44
Main Features
Support Protocol◆Apple iBeacon
◆Eddystone URL
◆Eddystone UID
◆Eddystone TLM
SensorAccelerometer optional
RechargeableNo(Its battery can be replaced )
Programmable parameters◆Tx Power/Advtisement period/Lock password;
◆iBeacon UUID/Major/Mior;
◆Compatible with Eddystone,URL,UID(NamespaceID, SerialID
Others◆Support Non connection advertisment Mode
◆Support Configruation advertisment Mode
◆Support Factory reset
Physical features
ChipsetnRF52 series
Tx Power-40~4dBm
Wireless Frequency Band2.4GHz
Transmitting range ◆BLE4.0/5.0: 100 meters in the open space.
The range depends on physical environment.
Powered by3V CR2016
Display wayBeacon Gateway or via Phone App
Beacon Factory Default Setting
iBeacon◆UUID: 0x7777772E-6B6B-6D63-6E2E-636F6D000001
◆MinorID: 0x0001
Tx Power0dBm
Broadcast interval1000ms
Eddystone UID◆Namespace ID: 6B6B6D636E2E636FD01
◆InstanceID ID:0x000000000001
Eddystone URLURL: www.kkmcn.com
Eddystone TLM◆Battery voltage;
◆Advertisements count/Time since power-up
Default Lock Code16Byte Lock Code:
Working environment
Working temperature-20℃ ~+65℃(default);

-30℃ ~+70℃(optional)

Storage  temperature10℃~+25℃,≤65%RH
