Long Range Badge Beacon K7P

DESCRIPTION

ID Badge Beacon

The ultra-thin K7P Badge Beacon is the long-lasting solution for indoor & outdoor positioning. Integrating the powerful Nordic chipset, it provides over 4 years of continuous operation.

  • Bluetooth Low Energy 4.0/5.0
  • Ultra-low power consumption chipset Nordic nRF52 series
  • Support iBeacon/ Eddystone at the same time
  • Logo and color customizable
  • Provide with your own configuration
  • 100% configurable parameters via App (Both Android & ios) and KKM gateway

K7P Card Beacon with ultra low power BLE 5.0 technology.

K7P badge also have variety of NFC/RFID standard support.
It is in credit card size and can be easily hanged in a lanyard. K7P Beacon is IP67 waterproof and dust proof. It has very strong signal, it is designed for personnel management, commercial advertising and indoor location-based service.

K7P Badge Beacon broadcasts 2.4GHz radio signals at regular and adjustable intervals. It support iBeacon/Eddystone at the same time.
K7P ID Card Beacon can be heard and interpreted by iOS and Android, or other BLE enable devices such as gateway, access point.

FEATURES

Bluetooth Low Energy

Ultra-low power consumption chipset

Support 5url broadcasting

Firmware update Over The Air (OTA)

Logo and color customizable

Provided with your own configuration

100% Configurable Parameters via app (Android & iOS)

DOWNLOAD

Portable, wear as pendant or ID card

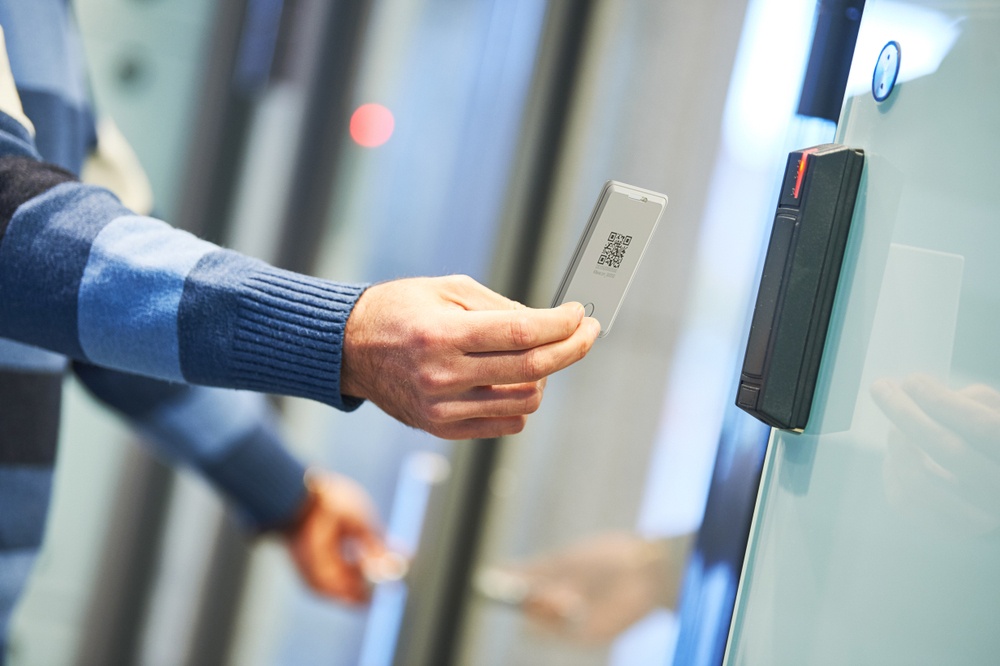

NFC/RFID tag optional
Compatible with iBeacon, Eddystone (UID, URL, TLM) and KSensor at the same time.
All the parameters of this product can be modified via configure APP or KGateway.

product details

SPECIFICATIONS

Material for shell ABS
Color Black, white
Size 86mm*56mm*4.6mm
Weight 20g (with battery)
Accessory NA
Battery Li-polymer battery (non-replaceable)
Battery life 42 Months (Base on Broadcast Interval 1s
and TX power 0dBm)

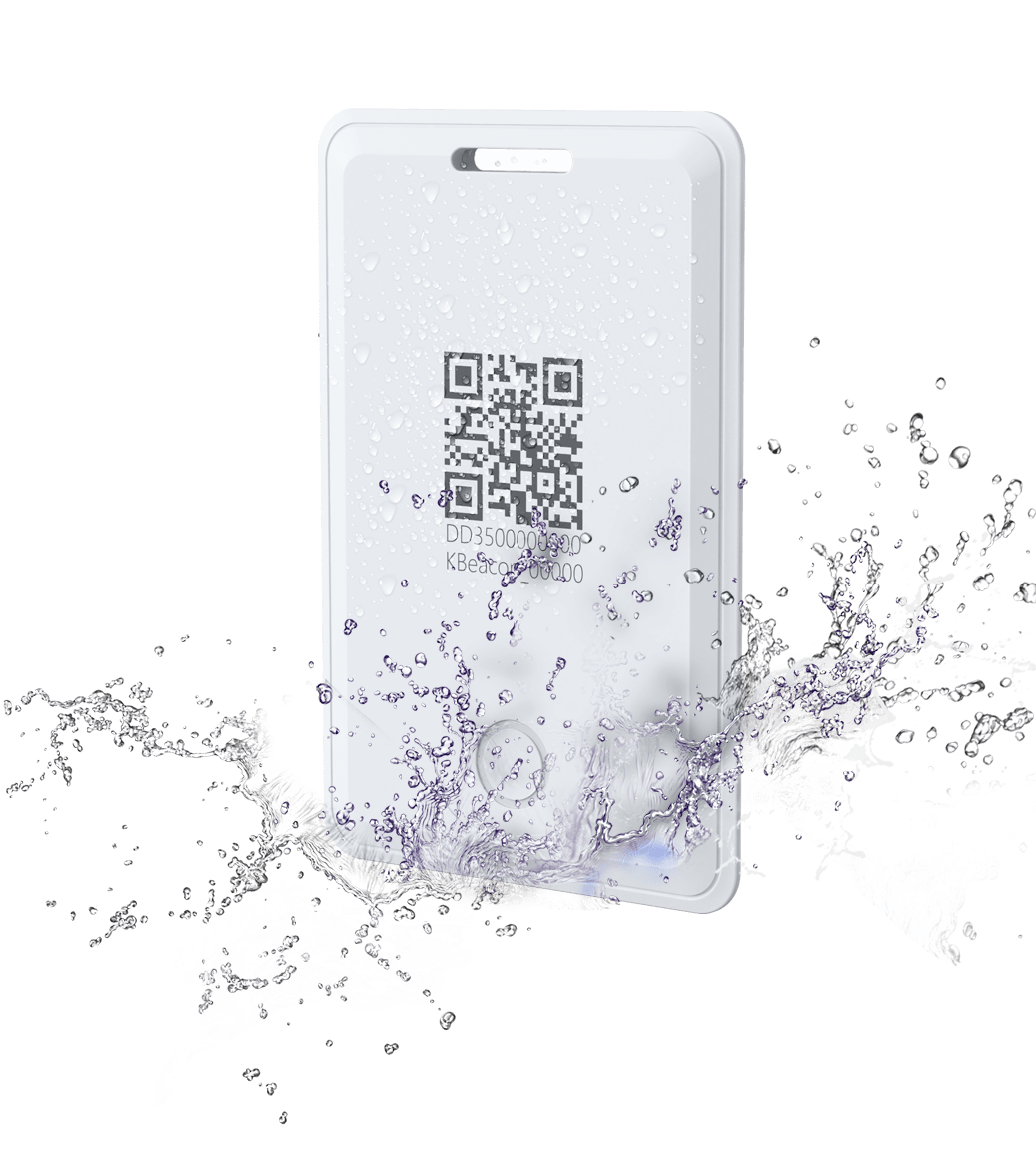

Waterproof level IP67
Main Features
Support Protocol ◆Apple iBeacon
◆Eddystone URL
◆Eddystone UID
◆Eddystone TLM
◆KSensor
OTA Yes
Button 1 Button
LED 1 LEDs
Sensor Accelerometer optional
NFC optional
Rechargeable No
Programmable parameters ◆Tx Power/Advtisement period/Lock password；
◆iBeacon UUID/Major/Mior；
◆Compatible with Eddystone，URL，UID(NamespaceID, SerialID
Buzzer N/A
Others ◆Support Non connection advertisment Mode
◆Support Configruation advertisment Mode
◆Support Factory reset
Physical features
Chipset nRF52 series
Tx Power -40~8dBm
BLE BLE5.0
Wireless Frequency Band 2.4GHz
Transmitting range  ◆BLE4.0: 100 meters in the open space.

◆BLE5.0 PHY Coded: Up to 600 meters in open sapce
The range depends on physical environment.
Powered by Li-ion battery
Display way Beacon Gateway or via Phone App
Beacon Factory Default Setting
iBeacon ◆UUID: 0x7777772E-6B6B-6D63-6E2E-636F6D000001
◆MajorID:0x0001
◆MinorID: 0x0001
Tx Power 0dBm
Broadcast interval 1000ms
Eddystone UID ◆Namespace ID: 6B6B6D636E2E636FD01
◆InstanceID ID:0x000000000001
Eddystone URL URL: www.kkmcn.com
Eddystone TLM ◆Battery voltage;
◆Temperature;
◆Advertisements count/Time since power-up
Default Lock Code 16Byte Lock Code:
◆0x3030303030303030303030303030303030303030
Working environment
Working temperature -20℃~+60℃
Storage  temperature 10℃~+25℃，≤65%RH
