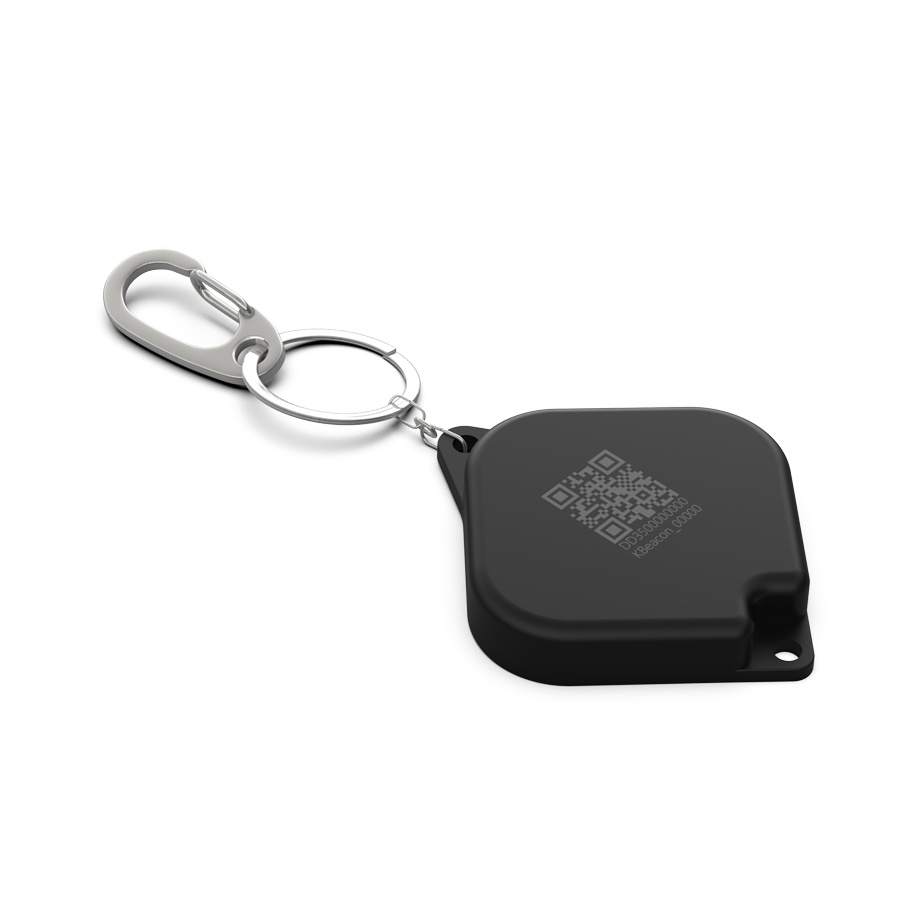

Waterproof Portable Bluetooth Beacon K12

DESCRIPTION

Waterproof Portable Keychain Beacon

  • Bluetooth Low Energy 4.0/5.0
  • Ultra-low power consumption chipset Nordic nRF52 series
  • Support iBeacon/ Eddystone at the same time
  • Logo and color customizable
  • Provide with your own configuration
  • 100% configuratble parameters via App (Both Android & ios)

K12 Bluetooth waterproof portable Beacon is a low cost keychain Beacon with ultra low power chipset Nordic nRF52 series and BLE 5.0 technology.
K12 beacon is IP67 waterproof. It has a portable case shape. With keychain hole and screw hole design, K12 Portable Beacon can easily be attached to other objects, it is designed for ibeacon asset tracking, commercial advertising, ibeacon proximity marketing and indoor location- based service.
K12 waterproof Portable Keychain Beacon broadcasts 2. 4GHz radio signals at regular and adjustable intervals. K12 BLE Beacon can be heard and interpreted by ios and Android BLE-enabled devices that are equipped with many mobile apps.

FEATURES



Bluetooth Low Energy

Ultra-low power consumption chipset

Support iBeacon, Eddystone advertisements simultaneously

Firmware update Over The Air (OTA)

Logo and color customizable

Provided with your own configuration

100% Configurable Parameters via KGateway or app (Android & iOS)

DOWNLOAD

Easily Portable with keychain
Compatible with iBeacon, Eddystone (UID, URL, TLM) and KSensor at the same time.
All the parameters of this product can be modified via configure APP or KGateway

PRODUCT DETAILS

K12 waterproof portable keychain dimension

SPECIFICATIONS

Specification
Material for shell ABS
Color Black, white
Size 37*37*8mm
Weight 13g (with battery)
Accessory 3M sticker
Battery CR2450
Battery life Up to 36 Months
Waterproof level IP67
Main Features
Support Protocol ◆Apple iBeacon
◆Eddystone URL
◆Eddystone UID
◆Eddystone TLM
OTA Yes
Button N/A
LED 1 LED
Sensor N/A
Rechargeable No
Programmable parameters ◆Tx Power/Advtisement period/Lock password；
◆iBeacon UUID/Major/Mior；
◆Compatible with Eddystone，URL，UID(NamespaceID, SerialID
Buzzer N/A
Others ◆Support Non connection advertisment Mode
◆Support Configruation advertisment Mode
◆Support Factory reset
Physical features
Chipset nRF52 series
Tx Power -40~4dBm
BLE BLE5.0
Wireless Frequency Band 2.4GHz
Transmitting range  ◆BLE4.0/5.0: 100 meters in the open space.
The range depends on physical environment.
Powered by 3V CR2450
Display way Beacon Gateway or via Phone App
Beacon Factory Default Setting
iBeacon ◆UUID: 0x7777772E-6B6B-6D63-6E2E-636F6D000001
◆MajorID:0x0001
◆MinorID: 0x0001
Tx Power 0dBm
Broadcast interval 1000ms
Eddystone UID ◆Namespace ID: 6B6B6D636E2E636FD01
◆InstanceID ID:0x000000000001
Eddystone URL URL: www.kkmcn.com
Eddystone TLM ◆Battery voltage;
◆Temperature;
◆Advertisements count/Time since power-up
Default Lock Code 16Byte Lock Code:
◆0x3030303030303030303030303030303030303030
Working environment
Working temperature -20℃ ~+65℃(default);

-30℃ ~+70℃(optional)
Storage  temperature 10℃~+25℃，≤65%RH
