Smalt & Thin Tiny Beacon Tag C2

DESCRIPTION

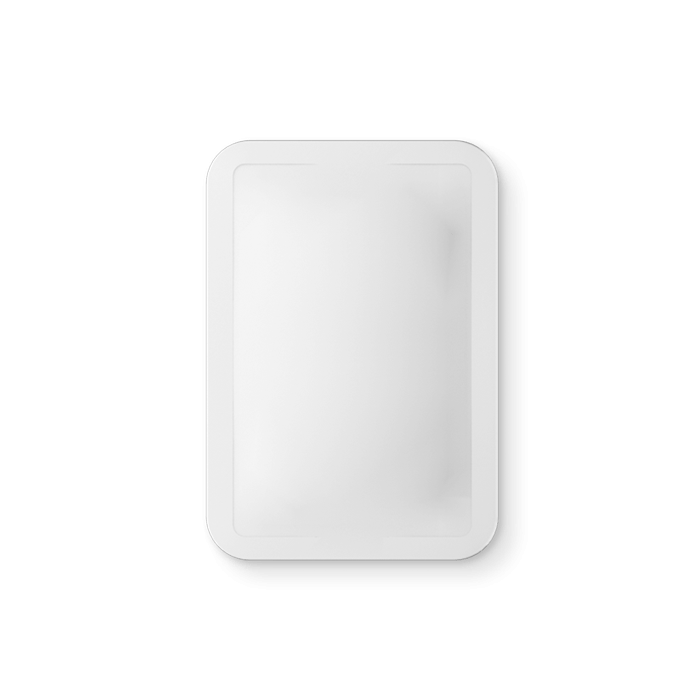

Thin Beacon Tag C2

  • Small size, ultra thin, easy to attach
  • Ultra light weight 1.2g
  • Waterproof IP67
  • Ultra-low power BLE5.0 chipset Nordic nRF52 series
  • Support iBeacon/ Eddystone(UID, URL, TLM) simultaneously

C2 Ultra-thin Bluetooth Beacon tag is a ultra small size and light weight Beacon with ultra low power chipset Nordic nRF52 series and BLE 5.0 technology.
C2 beacon tag is one of the smallest & thinnest & lightest Bluetooth beacon.
C2 tiny Beacon can easily be attached to other objects, such as clothes, paper documents, medicines, pill box and etc. C2 Bluetooth tag is designed for asset tracking, such as clothes warehouse management, medicine transfer system, and other indoor location- based service.
C2 Bluetooth tiny tag broadcasts 2. 4GHz radio signals at regular and adjustable intervals. C2 thin Beacon can be heard and interpreted by iOS and Android BLE-enabled devices that are equipped with many mobile apps.

FEATURES

Bluetooth Low Energy

Ultra-low power consumption chipset

Support iBeacon, Eddystone advertisements simultaneously

Firmware update Over The Air (OTA)

Logo and color customizable

Provided with your own configuration

100% Configurable Parameters via KGateway or app (Android & iOS)

DOWNLOAD

Ultra small size Bluetooth tiny beacon tag
1.2g Light weight
Small size to attach
Compatible with iBeacon, Eddystone (UID, URL, TLM) simultaneously
Small beacon designed perfectly for personal tracking solution, indoor tracking/navigation solution, pallet tracking solutions and etc
All the parameters of this product can be modified via configure APP.

Use Cases

Clothes Warehouse/Inventory Management

Use the tiny and light C2 Bluetooth beacon to attach clothes, trousers for quantity counting, inventory check-in/out management.
The C2 tiny beacon is small, and the software material is easy to attach the cloth material.

Madicine Inventory & Distribution Management

Attach the C2 Tiny beacon to medicine, pill box for a real-time inventory and distribution tracking and management.

SPECIFICATIONS

Specification
Material for shell Soft Material
Color white
Size 20*28.8*2.2mm
Weight 1.2g (with battery)
Accessory 3M sticker
Battery Coin battery
Battery life 4 Months (based on 0dBm TX power, 2 seconds Adv interval
Waterproof level IP67
Main Features
Support Protocol ◆Apple iBeacon
◆Eddystone URL
◆Eddystone UID
◆Eddystone TLM
OTA Yes
Button Yes
LED 1 LED
Sensor N/A
Rechargeable No
Programmable parameters ◆Tx Power/Advtisement period/Lock password；
◆iBeacon UUID/Major/Mior；
◆Compatible with Eddystone，URL，UID(NamespaceID, SerialID
Buzzer N/A
Others ◆Support Non connection advertisment Mode
◆Support Configruation advertisment Mode
◆Support Factory reset
Physical features
Chipset nRF52 series
Tx Power -40~4dBm
BLE BLE5.0
Wireless Frequency Band 2.4GHz
Transmitting range  ◆BLE4.0/5.0: 100 meters in the open space.
The range depends on physical environment.
Powered by Coin battery
Display way Beacon Gateway or via Phone App
Beacon Factory Default Setting
iBeacon ◆UUID: 0x7777772E-6B6B-6D63-6E2E-636F6D000001
◆MajorID:0x0001
◆MinorID: 0x0001
Tx Power 0dBm
Broadcast interval 1000ms
Eddystone UID ◆Namespace ID: 6B6B6D636E2E636FD01
◆InstanceID ID:0x000000000001
Eddystone URL URL: www.kkmcn.com
Eddystone TLM ◆Battery voltage;
◆Temperature;
◆Advertisements count/Time since power-up
Default Lock Code 16Byte Lock Code:
◆0x3030303030303030303030303030303030303030
Working environment
Working temperature -20℃ ~+65℃(default);

-30℃ ~+70℃(optional)
Storage  temperature 10℃~+25℃，≤65%RH
