USB Beacon U1

DESCRIPTION

Bluetooth Low Energy 4.0/5.0

  • Plug and Play
  • Ultra-low power consumption chipset Nordic nRF52 series
  • Support iBeacon/ Eddystone at the same time
  • Logo and color customizable
  • Provide with your own configuration
  • 100% configuratble parameters via App (Both Android & ios)

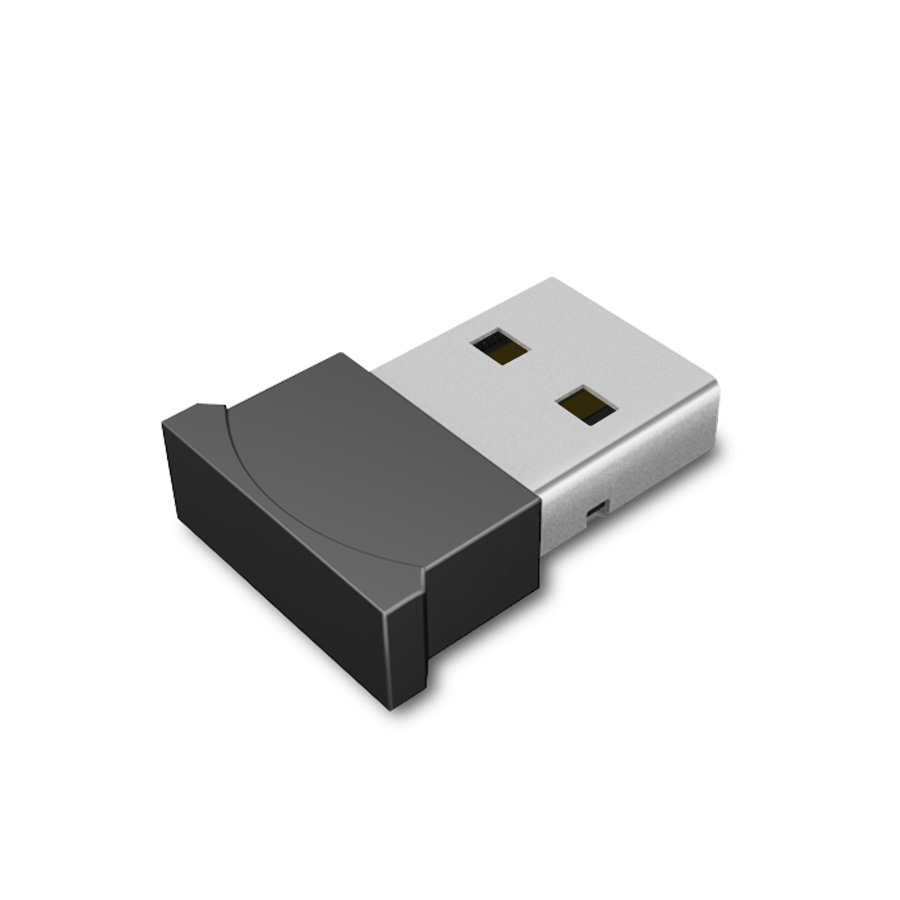

U1 Beacon is USB plug design Beacon with ultra low power chipset Nordic nRF52 series and BLE 5.0 technology.

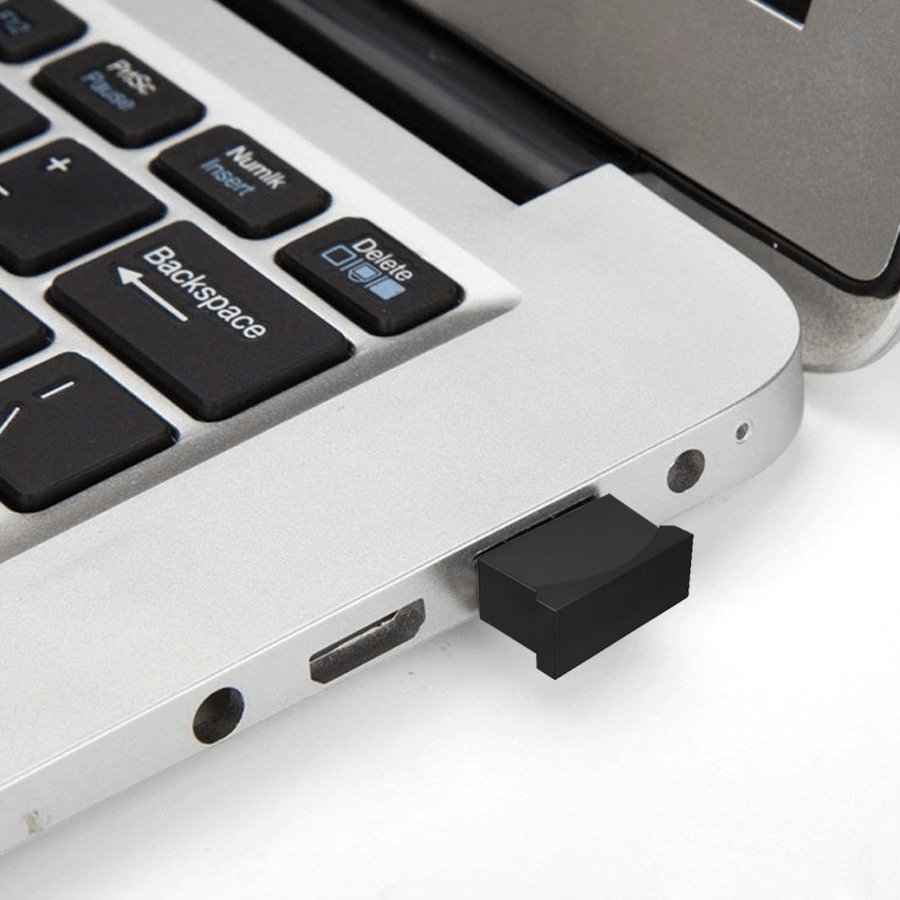

U1 beacon in mini size and can be easily carry and plug to use. It is USB powered. You don’t have to worry about the battery maintanence. It has good signal, it is designed for personnel management, commercial advertising and indoor location-based service.

U1 Beacon broadcasts 2.4GHz radio signals at regular and adjustable intervals. U1 Beacon can be heard and interpreted by iOS and Android BLE- enabled devices that are equipped with many mobile apps.

DOWNLOAD

USB powered, Plug and Play
Compatible with iBeacon, Eddystone (UID, URL, TLM) at the same time.
All the parameters of this product can be modified via configure APP or KGateway.

FEATURES

Bluetooth Low Energy

Ultra-low power consumption chipset

Support 5url broadcasting

Firmware update Over The Air (OTA)

Logo and color customizable

Provided with your own configuration

100% Configurable Parameters via app (Android & iOS)

product details

SPECIFICATIONS

Material for shell ABS
Color Black, white
Size 22mm*16mm*6mm
Weight 2g (without battery)
Accessory NA
Battery USB powered 5V
Battery life Without bttery
Waterproof level NA
Main Features
Support Protocol ◆Apple iBeacon
◆Eddystone URL
◆Eddystone UID
◆Eddystone TLM
OTA Yes
Button NA
LED 1 LED
Sensor NA
Rechargeable No
Programmable parameters ◆Tx Power/Advtisement period/Lock password；
◆iBeacon UUID/Major/Mior；
◆Compatible with Eddystone，URL，UID(NamespaceID, SerialID
Buzzer N/A
Others ◆Support Non connection advertisment Mode
◆Support Configruation advertisment Mode
◆Support Factory reset
Physical features
Chipset nRF52 series
Tx Power -40~4dBm
BLE BLE5.0
Wireless Frequency Band 2.4GHz
Transmitting range  ◆BLE5.0: 100 meters in the open space.
The range depends on physical environment.
Powered by USB port 5V
Display way Beacon Gateway or via Phone App
Beacon Factory Default Setting
iBeacon ◆UUID: 0x7777772E-6B6B-6D63-6E2E-636F6D000001
◆MajorID:0x0001
◆MinorID: 0x0001
Tx Power 0dBm
Broadcast interval 1000ms
Eddystone UID ◆Namespace ID: 6B6B6D636E2E636FD01
◆InstanceID ID:0x000000000001
Eddystone URL URL: www.kkmcn.com
Eddystone TLM ◆Battery voltage;
◆Temperature;
◆Advertisements count/Time since power-up
Default Lock Code 16Byte Lock Code:
◆0x3030303030303030303030303030303030303030
Working environment
Working temperature -40℃~+70℃
Storage  temperature 10℃~+25℃，≤65%RH
