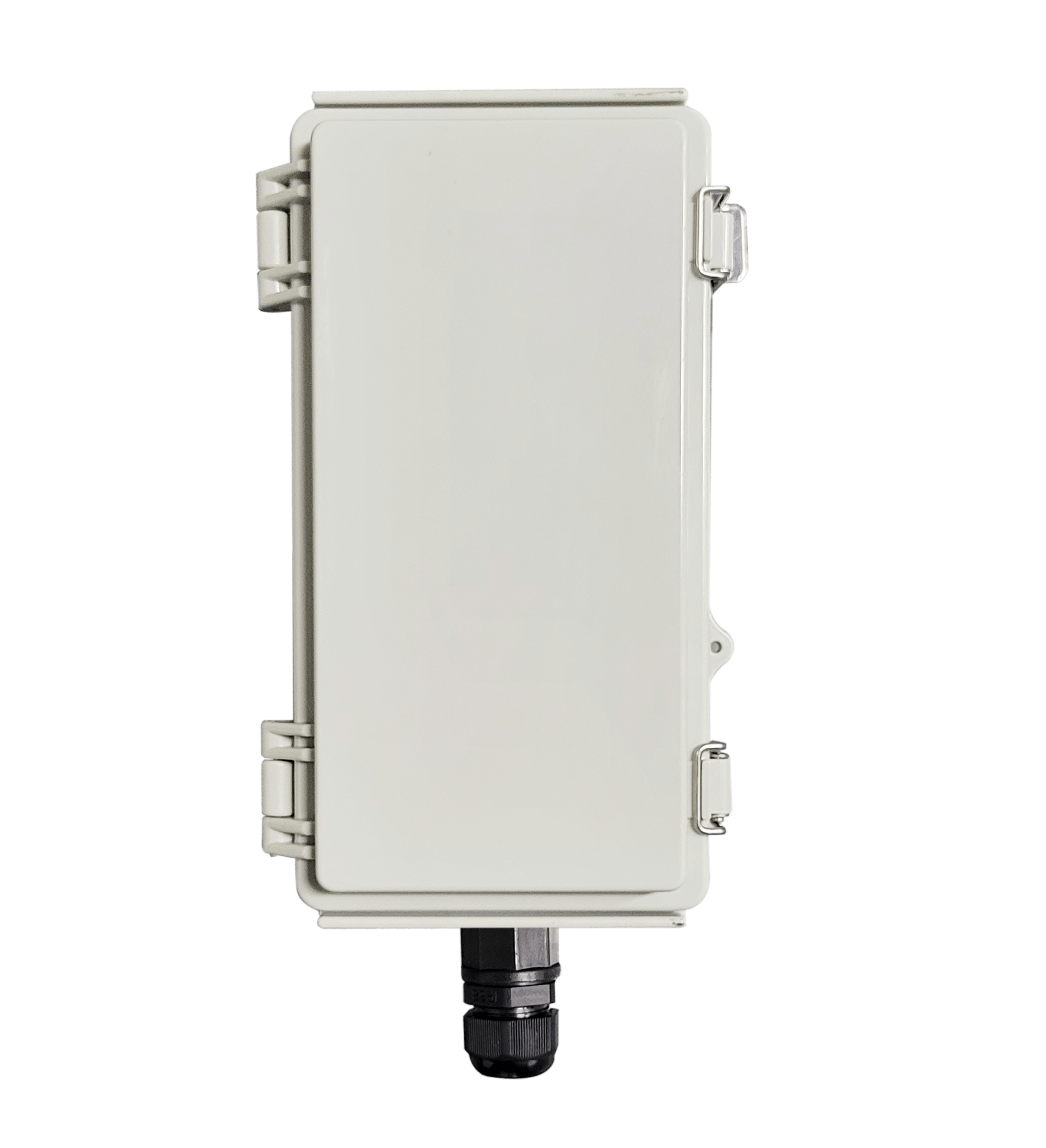

KG03 Outdoor IoT Bluetooth Gateway comes with IP67 enclosure design, is a Robust and strong IoT gateway. It scan/receive Bluetooth 4.0/4.1/4.2/5.0 packet and upload via 3G/4G cellular/Wi-Fi/Ethernet connectivity without using smartphones or apps.

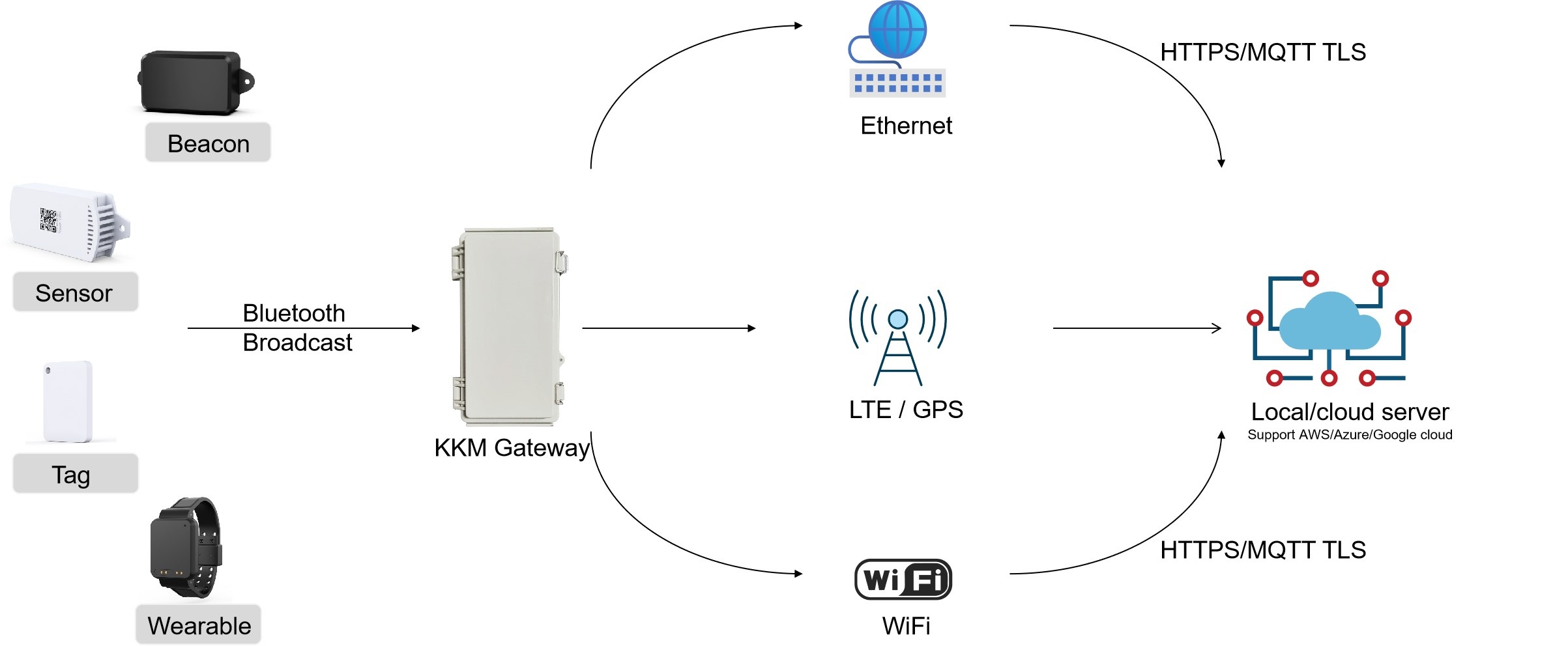

The KG03 Robust Outdoor Bluetooth gateway collects the data from iBeacon, Eddystone, BLE sensor or other BLE devices, and upload data to the local or remote cloud server by MQTT/HTTPS protocol.
The gateway configurations can be updated locally with a web portal, or configured remotely via API from your server. And it also support update the KKM beacons parameters remotely.
KG03 IP67 Outdoor BLE Gateway comes with industrial design, designed to work outdoor. The engineering design and hardware design make it work in high temperature and low temperature environment, such as desert, etc harsh environment.
KG03 Outdoor IoT Bluetooth Gateway supports Bluetooth 5.0 LE Coded PHY long range. PHY Coded and built-in PA make KG03 working in range of 600 meters in open space.
KG03 Bluetooth Beacon Gateway provides offline storage, it prevent data packet lost due to the network disconnection.
KKM KG03 IoT Industrial BLE gateway also provide convenient operation & maintenance tools. The user is easy to configure the KG03 Bluetooth gateway | Beacon Gateway via a web/phone UI, and it support remote configuration.
Avoid mass device offline risks caused by remote configuration changes
The KG03 cellular gateway embeds auto‑rollback protection, specially designed for remote parameter tuning. After you update gateway configuration from cloud, the device reboots and applies new parameters. The gateway monitors cloud connectivity after reboot. If the new configuration fails to connect to cloud platform, the gateway automatically reverts to the previous working configuration and restores communication rapidly. No on‑site visit is needed, which greatly cuts operation‑and‑maintenance cost.
Ultra-long Range
BLE5.0 PHY Code, built-in LNA/PA, up to 600 meters working range
Bidirectional Communication
Configure gateway and beacon parameters remotely from cloud
Multi Transmissions
Cellular(3G/4G), WiFi, Ethernet network connection
Powful Filter Function
Support different filter rules, meet different use cases
High Security
Support E2E security protocol, HTTPS/MQTT TLS encryption
Easy Maintenance
Web portal in phone & PC, OTA support, Remote configurations from Cloud or local
GPS optional
Real-time location tracking and data upload, widely used in cold chain, logistics
Data offline storage
Data saved offline and upload after network connection restore

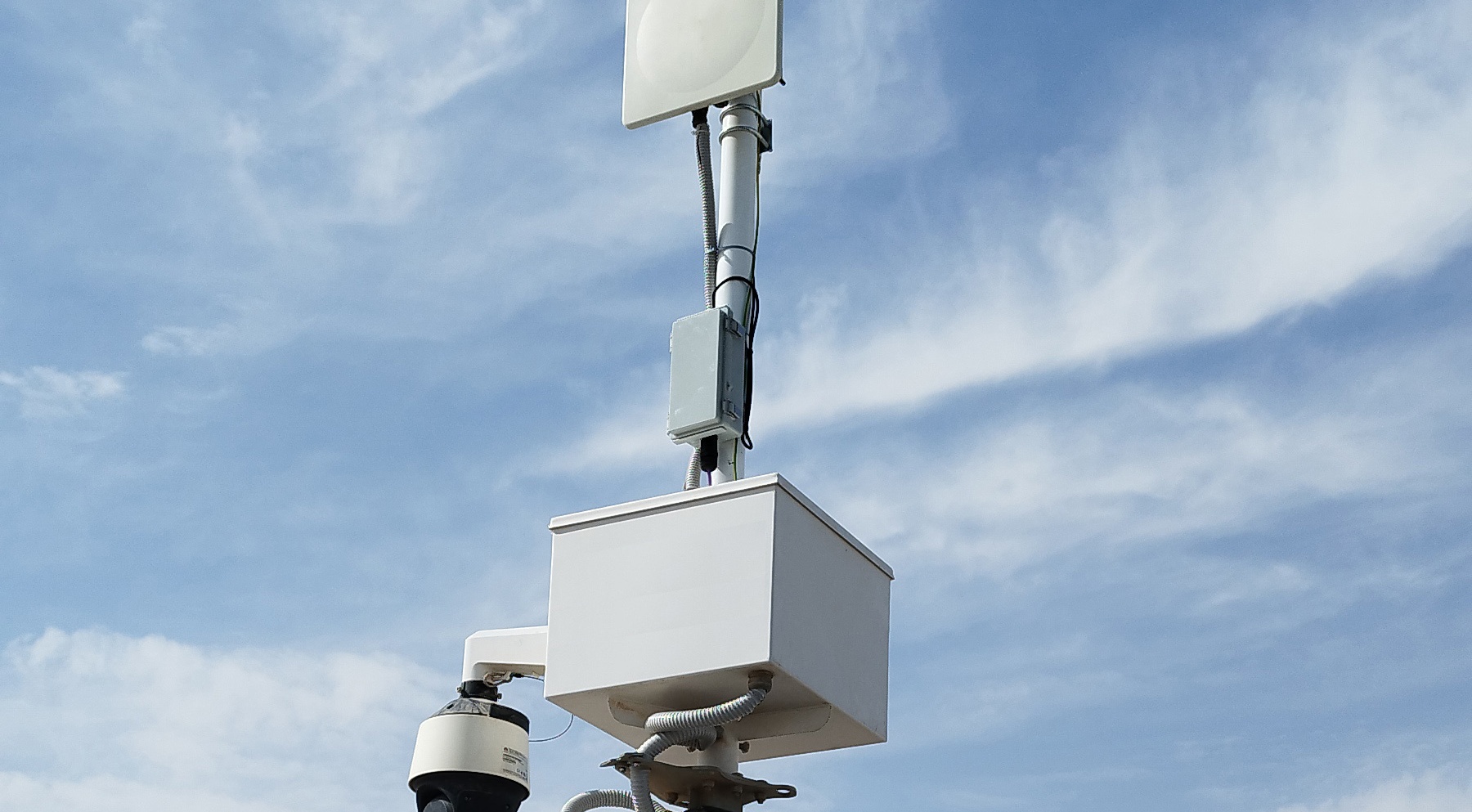

Outdoor Bluetooth Gateway__Asset Tracking, Staff Management
KG03 comes with IP67 waterproof and strong enclosure. and we use the cold and heat resisting components, which make the KG03 Bluetooth gateway working in a harsh environment, such as desert, snowing winter, and etc.
LTE & GPS Bluetooth Gateway__Real-time tracking & monitoring
KKM KG03 support LTE (3G/4G) for network connection and GPS real-time tracking. It upload GPS data in alive message or together with the scanning beacon data.
KG03 Bluetototh gateway also use high-impact hardware and mechanism design, which is perfect for moving truck, bus and etc.
Model | KG03 WATERPROOF BLUETOOTH GATEWAY |
Size | 220mm*110mm*75mm |
Weight | 350g |
IP Rating | P67, design for outdoor use |
Material | ABS/PC |
Power Supply | DC 9 ~ 12v/1A or 802.3af POE |
Interface | RJ45 port or DC 9V, 1 nano SIM card(optional) |
Working Temperature | -30℃~+75℃ |
Installation Way | Screws |
Indicator | RGB LED indicator (internal) |
Working Humidity | 5% ~ 95%RH |
BLE Protocol | BLE4.0, BLE4.1, BLE4.2, BLE5.0 |
Wireless Distance | BLE4.x/BLE5.0 @1 Mbps: up to 200 meter(open area) BLE5.0 PHY Coded @125 Kbps: up to 600 meter(open area) |
Scanning Ability | >260 packets per second |
Transmitting Way | ETH RJ45, Wi-Fi, LTE(3G/4G) |
RX Sensitivity | -108dBm @1Mbps, 0.1 %BER -115dBm @125kbps, 0.1 %BER |
Transmit Power | 18 dBm (Max) |
Antenna Gain | 3 dBi |
WiFi Protocols | IEEE 802.11b/g/n |
WiFi Frequencies | 2T2R 2412 MHz ~ 2484 MHz |
Data Transfer Speed | IEEE 802.11n: Up to 300 Mbps IEEE 802.11g: Up to 54 Mbps IEEE 802.11b: Up to 11 Mbps |
Transmit Power | IEEE 802.11n: 13 ~ 16 dBm IEEE 802.11g: 14 ~ 17 dBm IEEE 802.11b: 16 ~ 20 dBm |
Receiving Sensitivity | HT40 MCS7 : -69dBm@10% PER(MCS7) HT20 MCS7 : -71dBm@10% PER(MCS7) 54M: -75dBm@10% PER 11M: -88dBm@ 8% PER |
Modulate Mode | DSSS (DBPSK, DQPSK, CCK) OFDM (BPSK, QPSK, 16-QAM, 64-QAM |
Network Protocol | HTTP(SSL/TLS) MQTT(SSL/TLS) |
Wireless Encryption | WPA-PSK/WPA2-PSK, WPA-EAP/WPA2-EAP and TKIP |
Optional Models | EC25-E: Europe/Middle East/Africa/Korea/India EC25-AF: North America |
LTE Band | Please contact our sales team for details information. |
Data Transfer Speed | LTE FDD: 150Mbps(DL)/50Mbps(UL) LTE TDD: 130Mbps(DL)/30Mbps(UL) |
Output Power | Class 3 (23dBm±2dB) for LTE-FDD bands Class 3 (23dBm±2dB) for LTE-TDD bands |
SIM card | Nano sim card |
GNSS(optional) | GPS / Glonass / Beidou Positioning accuracy: 30 meters |
