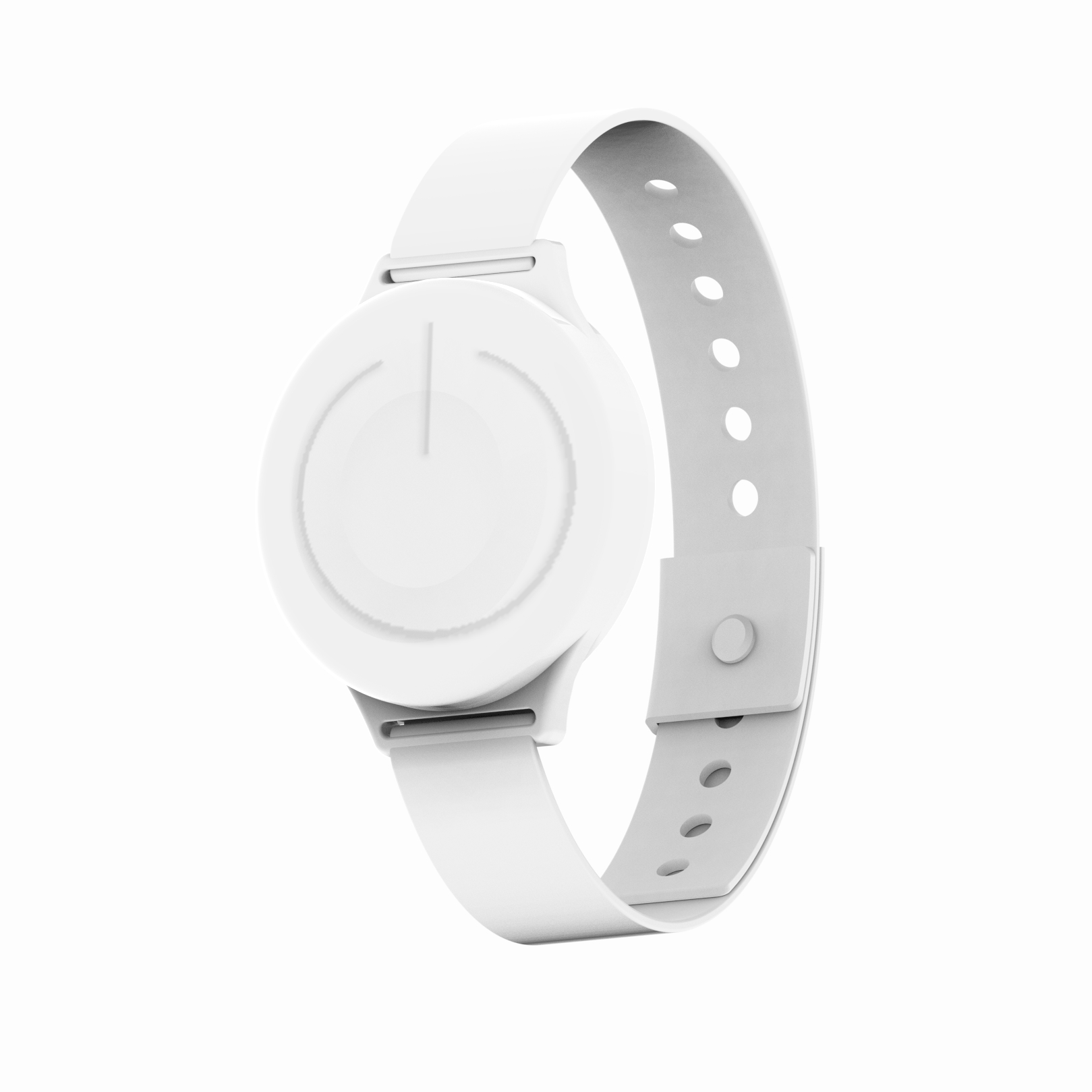

Medical Wristband W8

DESCRIPTION

Medical Wristband Beacon

  • Support SOS Button
  • NFC optional
  • IP67 waterproof, battery replaceable
  • Replaceable band
  • Bluetooth Low Energy 4.0/5.0
  • Ultra-low power consumption chipset Nordic nRF52 series
  • Support iBeacon/ Eddystone at the same time
  • Logo and color customizable
  • Provide with your own configuration
  • 100% configuratble parameters via App (Both Android & ios)

W8 wristband is a smart wristband, designed for healthcare management with Geo-fencing.
W8 medical band is IP67 waterproof.
W8 medical wristband beacon come with battery replaceable design. The band is replaceable, which can recycle and save your cost.
Also, W8 medical wristband beacon supports SOS button feature, the users can use the button on W8 and call for help.
W8 wristband is commonly applied to real-time monitoring and tracking of personnel in check points, airports, hospitals, schools, stations, factories, communities, shopping malls, stadiums。
W8 Bluetooth Beacon broadcasts 2.4GHz radio signals at regular and adjustable intervals. W8 Bluetooth 5.0 Beacon can be heard and interpreted by ios and Android BLE-enabled devices that are equipped with many mobile apps.

FEATURES



Bluetooth Low Energy

Ultra-low power consumption chipset nRF52 series

Support 5url broadcasting

Firmware update Over The Air (OTA)

Logo and color customizable (MOQ)

Provided with your own configuration

100% Configurable Parameters via app (Android & iOS)

DOWNLOAD



Easily replaceable with Wearable
Additional NFC available
Compatible with iBeacon and Eddystone (UID, URL, TLM) at the same time.
All the parameters of this product can be modified via configure APP.

How it works

W8 Hospital Indoor Tracking Beacon

Eco-Friendly Wristband, IP67 iBeacon indoor tracking, used in hospital, Nursing home for patience and visitor management.

Real-Time Location Tracking

Thanks for the Bluetooth Low Energy technology, you can use Bluetooth beacon for RTLS (Real-Time Location Tracking Solution) to improve the patience & vistors mangement.

SPECIFICATIONS

Material for shell ABS+TPU
Color White
Size Dia 34mm*8.4mm, band 250mm
Weight 23g
Accessory N/A
Battery CR2032
Battery life 16 months
Waterproof level IP67
Main Features
Support Protocol ◆Apple iBeacon
◆Eddystone URL
◆Eddystone UID
◆Eddystone TLM
OTA Support(Update by air)
Button 1 Button
LED 1 LED
Sensor Accelerometer
Rechargeable NA
Programmable parameters ◆Tx Power/Advtisement period/Lock password；
◆iBeacon UUID/Major/Mior；
◆Compatible with Eddystone，URL，UID(NamespaceID, SerialID
Buzzer N/A
Others ◆Support Non connection advertisment Mode
◆Support Configruation advertisment Mode
◆Support Factory reset
Physical features
Chipset nRF52 series
Tx Power -40~4dBm
BLE BLE5.0
Wireless Frequency Band 2.4GHz
Transmitting range  ◆BLE4.0/5.0: up to 100m；
*The max. range 50 meters in the open space. The range depends on physical environment.
Powered by CR2032
Display way Beacon Gateway or via Phone App
Beacon Factory Default Setting
iBeacon ◆UUID: 0x7777772E-6B6B-6D63-6E2E-636F6D000001
◆MajorID:0x0001
◆MinorID: 0x0001
Tx Power 0dBm
Broadcast interval 1000ms
Eddystone UID ◆Namespace ID: 6B6B6D636E2E636FD01
◆InstanceID ID:0x000000000001
Eddystone URL URL: www.kkmcn.com
Eddystone TLM ◆Battery voltage;
◆Temperature;
◆Advertisements count/Time since power-up
Default Lock Code 16Byte Lock Code:
◆0x3030303030303030303030303030303030303030
Working environment
Working temperature -20℃ ~+65℃(default);

-30℃ ~+70℃(optional)
Storage  temperature 10℃~+25℃，≤65%RH
