Rechargeable Bluetooth Beacon Bracelet W59

DESCRIPTION

  • Support Vibration & Sound
  • Bluetooth Low Energy 4.0/5.0
  • IP67 Waterproof, Rechargeable Bracelet beacon, 4 months per charge
  • Ultra-low power consumption chipset Nordic nRF52 series
  • Support iBeacon/ Eddystone at the same time
  • Logo and color customizable
  • Provide with your own configuration
  • 100% configuratble parameters via App (Both Android & ios)

W59 Bracelet Beacon is a Bracelet Beacon with ultra low power chipset Nordic nRF52 series and BLE 5.0 technology.
It is designed for commercial advertising and indoor location-based service, such as amusement park, trade show.
W59 Bluetooth Beacon broadcasts 2.4GHz radio signals at regular and adjustable intervals. W59 Bluetooth 5.0 Beacon can be heard and interpreted by ios and Android BLE-enabled devices that are equipped with many mobile apps.

FEATURES



Bluetooth Low Energy

Ultra-low power consumption chipset nRF52 series

Support 5url broadcasting

Firmware update Over The Air (OTA)

Logo and color customizable (MOQ)

Provided with your own configuration

100% Configurable Parameters via app (Android & iOS)

DOWNLOAD

Easily Portable with Wearable
Additional Motion sensors available
Compatible with iBeacon and Eddystone (UID, URL, TLM) at the same time.
All the parameters of this product can be modified via configure APP.

Office

Workplace/construction site

Hospital

Playground

Vibration montor

Reminder for drink water or rest by vibration sensor trigger

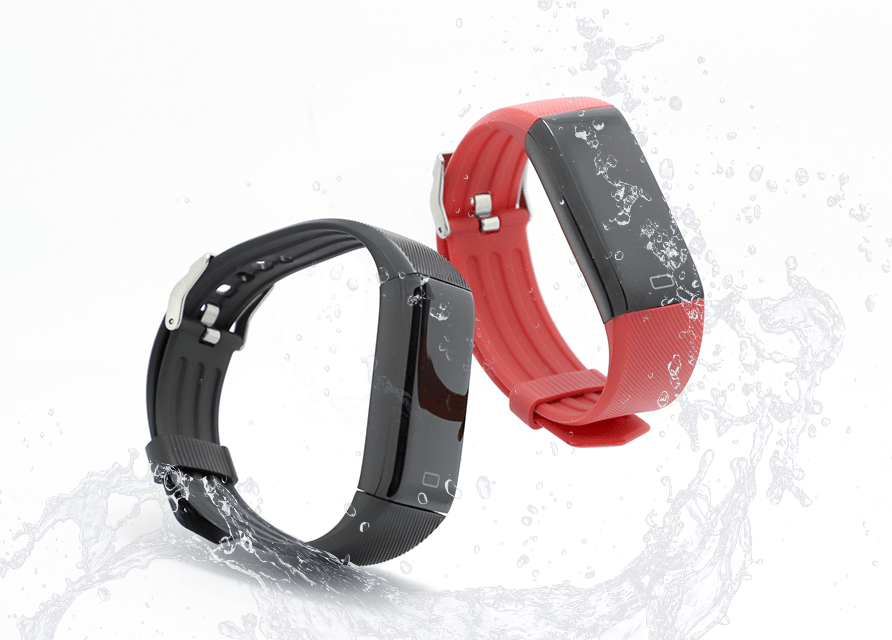

Waterproof IP67

It is designed IP67 rating and dustproof

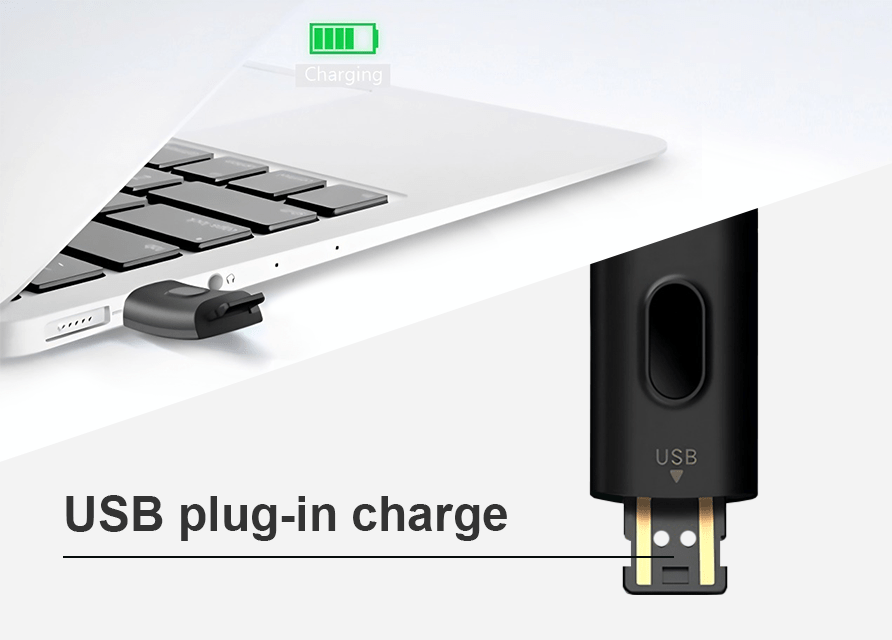

Rechargeable Battery

120 days per charge,no need to replace battery

Employee Tracking

W59 beacon is a wearable wristband Beacon and W59 is ideal for people indoor location tracking and workplace staff safety solutions.

Elderly People Management

The vibration sensor reminds them when the they need to drink water. The vibration sensor reminds them when the they need to exercise.

Students Tracking

RTLS tracking location for the students if at the school or library,resturant or stadium.
The parents will know if their children safety.

Motion Trigger Sensor

Additional motion sensor optional,when someone moved,the device will broadcast the accelerometer sensor data.

SPECIFICATIONS

Material for shellABS+silicone loop
ColorBlack, red, blue
Size40*18*9.5mm, band 260mm
Weight33g
AccessoryRing silicone
Battery Li-polymer battery (rechargeable)
Battery life4 months per charge
Waterproof levelIP67
Main Features
Support Protocol◆Apple iBeacon
◆Eddystone URL
◆Eddystone UID
◆Eddystone TLM
OTASupport(Update by air)
Button1 Button (touch button)
LED2 LED
SensorVibration motor optioonal
RechargeableYes
Programmable parameters◆Tx Power/Advtisement period/Lock password；
◆iBeacon UUID/Major/Mior；
◆Compatible with Eddystone，URL，UID(NamespaceID, SerialID
BuzzerSound optional
Others◆Support Non connection advertisment Mode
◆Support Configruation advertisment Mode
◆Support Factory reset
Physical features
ChipsetnRF52 series
Tx Power-40~4dBm
BLEBLE5.0
Wireless Frequency Band2.4GHz
Transmitting range ◆BLE4.0/5.0: up to 100m；
*The max. range 100 meters in the open space. The range depends on physical environment.
Powered by Li-polymer battery (rechargeable)
Display wayBeacon Gateway or via Phone App
Beacon Factory Default Setting
iBeacon◆UUID: 0x7777772E-6B6B-6D63-6E2E-636F6D000001
◆MajorID:0x0001
◆MinorID: 0x0001
Tx Power0dBm
Broadcast interval1000ms
Eddystone UID◆Namespace ID: 6B6B6D636E2E636FD01
◆InstanceID ID:0x000000000001
Eddystone URLURL: www.kkmcn.com
Eddystone TLM◆Battery voltage;
◆Temperature;
◆Advertisements count/Time since power-up
Default Lock Code16Byte Lock Code:
◆0x3030303030303030303030303030303030303030
Working environment
Working temperature-20℃~+60℃
Storage  temperature10℃~+25℃，≤65%RH
