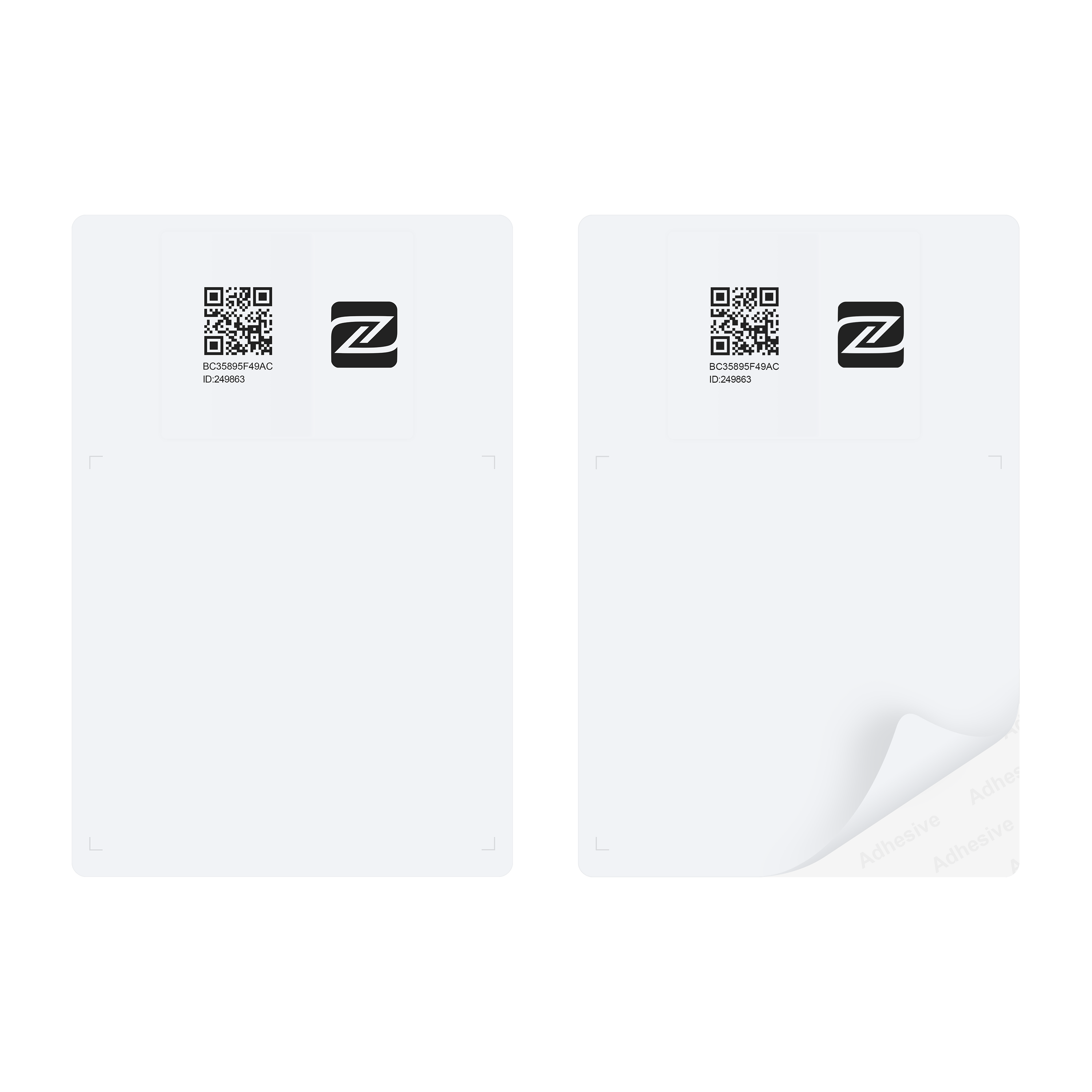

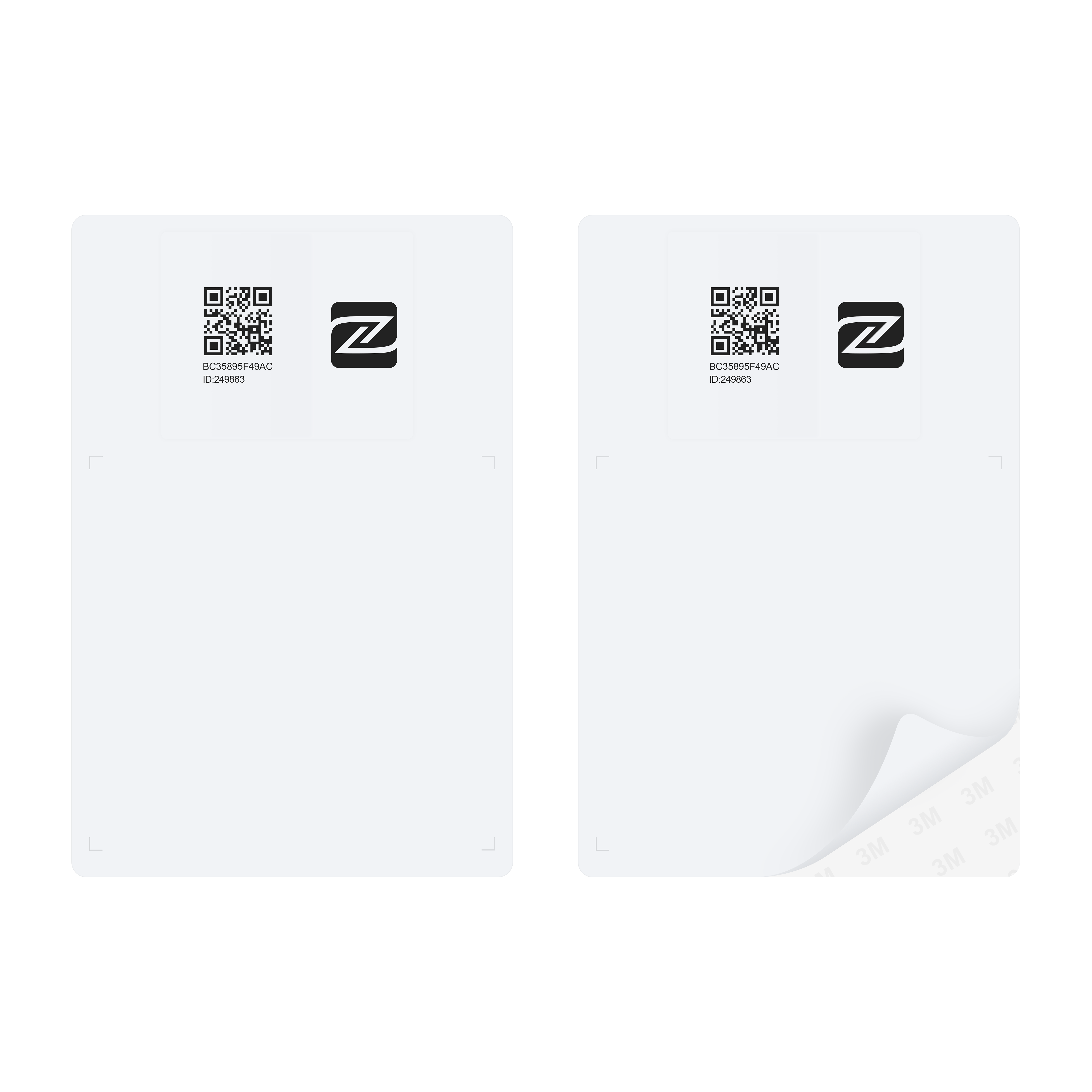

C6 Bluetooth Printable Asset Label

C6 Bluetooth Printable Asset Label, one of the thinnest tag in the world, provides a cutting-edge solution for efficient and sustainable asset tracking. Its 1.5 mm thickness and a weighing 4g provides flexible solutions to variety of scenarios.

C6 printable asset tracking label also offers a standard express waybill dimension option or other dimensions. Thanks to the flexible circuit, eco-friendly paper battery,1.5 mm thin and bendable design, you can print different content and template such as the logistic info to meet various of use cases.

C6 asset label support UHF NFC, which used for power on and provides a secure, precise, and interactive way to manage assets together with BLE.

Ultra-thin 1.5 mm

Eco-friendly Paper Battery

BLE

UHF NFC

Long Service Life

60° Bendable

Printable

Cost-effective

DESCRIPTION

PRODUCT Application

C6 Printable Asset Label offers a standard express waybill dimension option, or other dimensions to fit variety of scenarios. Thanks to the flexible circuit, eco-friendly paper battery,1.5 mm thin and bendable design, you can print different content and template such as the logistic info to meet various of use cases.

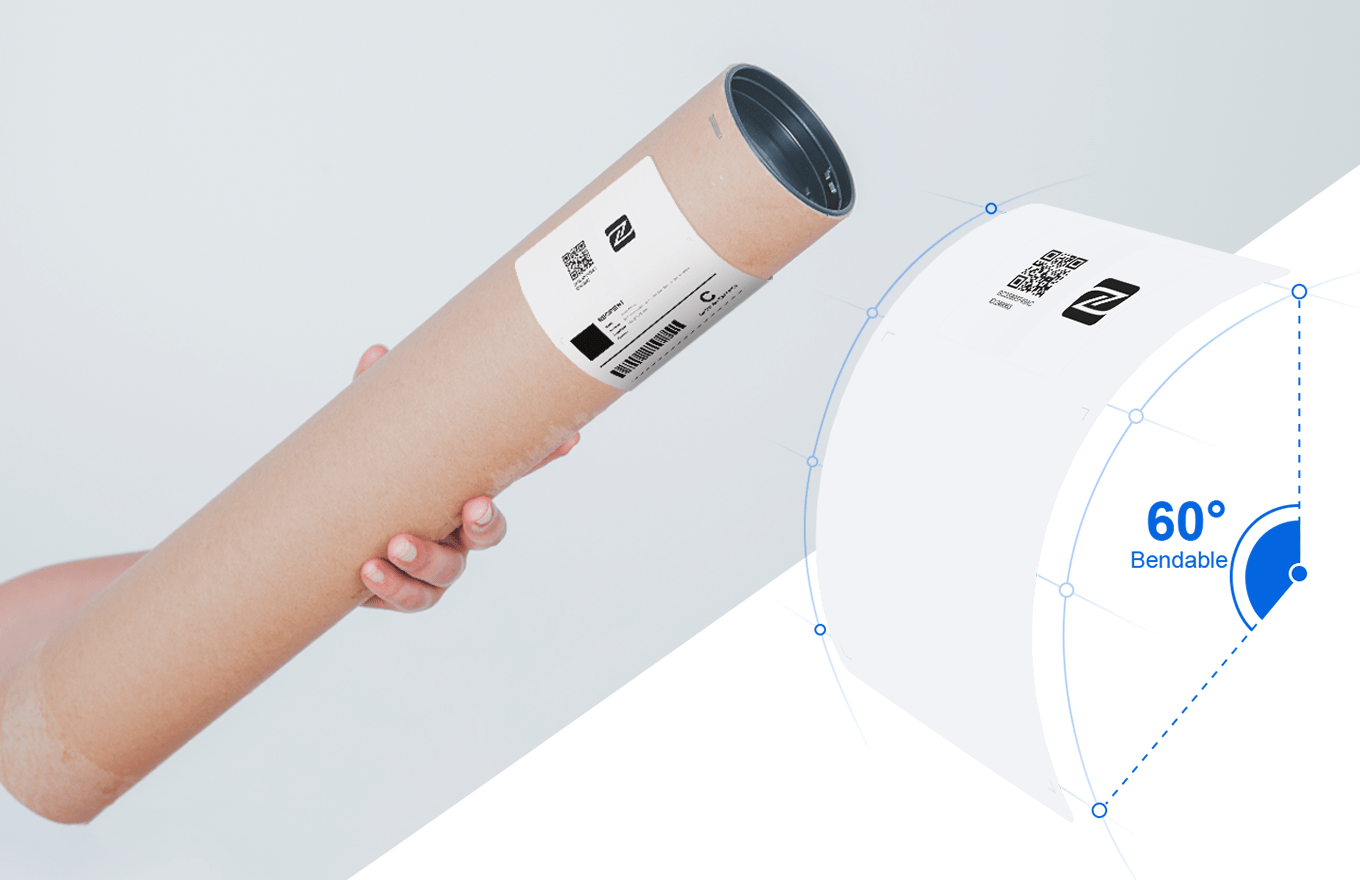

The flexible PCBA allows up to 60 degree bending. You can attached the C6 printable asset label to different items, track and monitor.

Combining with Bluetooth and NFC, the C6 printable asset tracking label can apply to logistic, pharmacy, vaccine and variety of use cases. It offer Bluetooth tracking as well as NFC access tracking.

With eco-friendly battery, the C6 printable label are free to plane, cargo shipping, offering safe and eco tracking solution.

Specification

Size

100mm×150mmx1.5mm

Material

Synthetic paper

Color

White

Weight

4g (with battery)

Battery Capacity

40mAh

Battery Life

Over 18 months (based on KKM default setting)

Working Humidity

0 ~ 99% RH

Bluetooth Version

BLE 5.0/ BLE 4.x

OTA

No

TX Power

-40 ~ 4 dBm

Broadcast Interval

100ms ~ 40000ms

Transmit Range

80 meters (Open space)

Type(channel)

Item

Default Settings

IBeacon (ON)

● UUID

● Major/Minor

● Measured power

7777772E-6B6B-6D63-6E2E-636F6D00000 Major and Minor combination is unique -59dBm
