S6S Series PT100 DS18B20 BLE Sensor

The S6S series is built for accurate temperature monitoring in extremely low or high conditions, with instant alerts when user-defined limits are crossed.
It comes with buzzer, providing sound alert when the temperature/humidity is beyond or lower than threshold.
It’s well-suited to demanding fields such as food production, healthcare, vaccine handling, and biotechnology.

The S6S temperature sensor offers various probes, allowing you to choose the right cable length and measurement range for your task. It equips with PT100, DS18B20 or Sensirion temperature sensor. Constructed from materials that meet food safety standards, it can be safely used in direct contact with consumables.

IP67 Waterproof

Temperature & Humidity Sensor

PHY Coded Long Range

40,000 T&H Logger Records

>> DESCRIPTION

Up to 8 years battery life
With Temperature-Humidity & Accelerometer
Support trigger function
With temperature/humidity data logger
Optional extended sensor probe
All the parameters of this product can be modified via configuration App or KGateway.

4000mAh high-capacity Battery

Equipped with a 4000mAh high-capacity battery , the S6S series can run for its entire service life without a replacement. This saves you time and reduces maintenance costs.

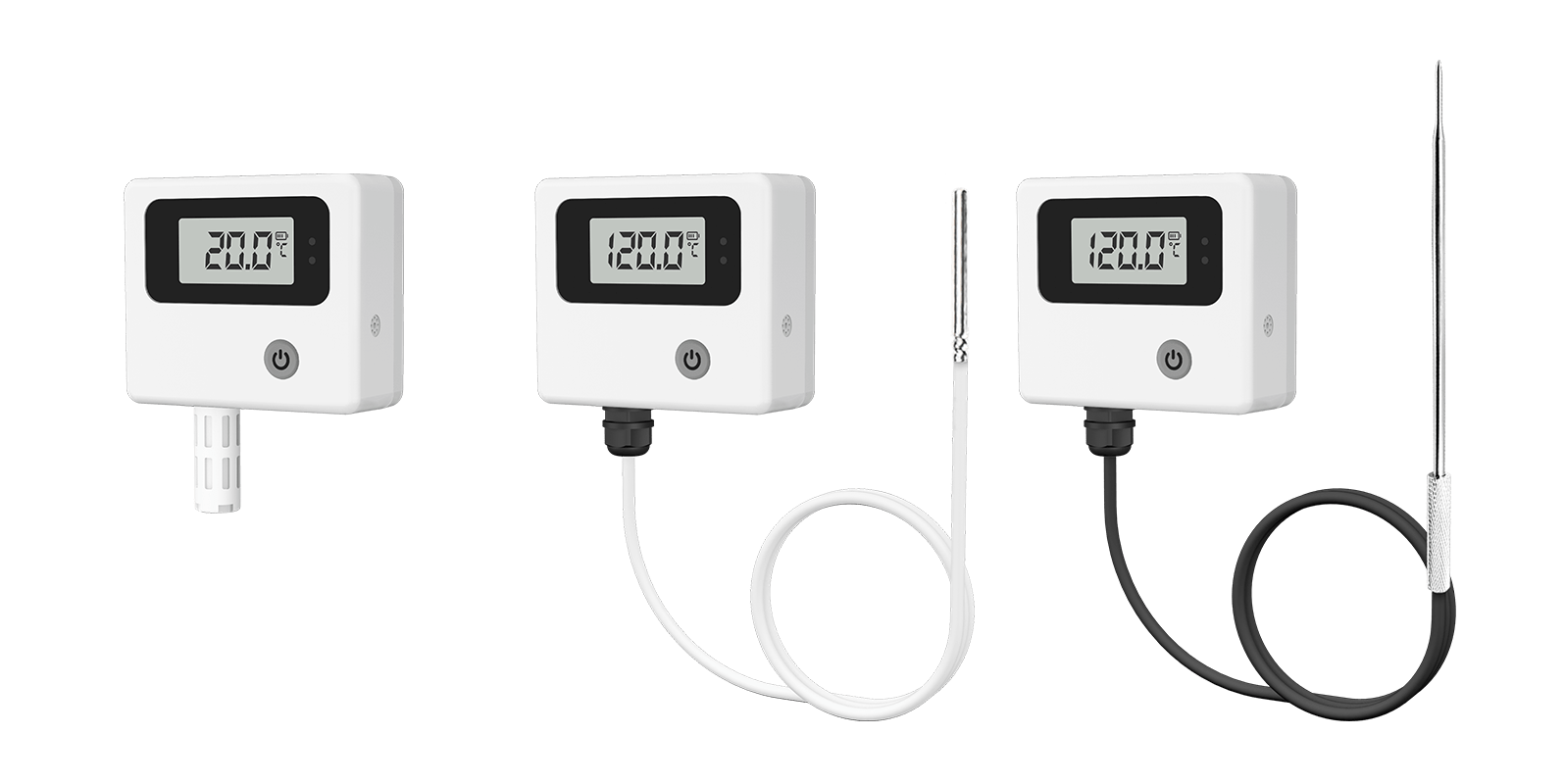

Multiple Probe Options

Choose the right sensor for your needs. We offer a wide range of probes, including Sensirion Digital sensor, NTC, DS18B20, and PT100.

40,000 Data Storage

The device can store more than 40,000 records locally. Your data is safe even if the network goes down.

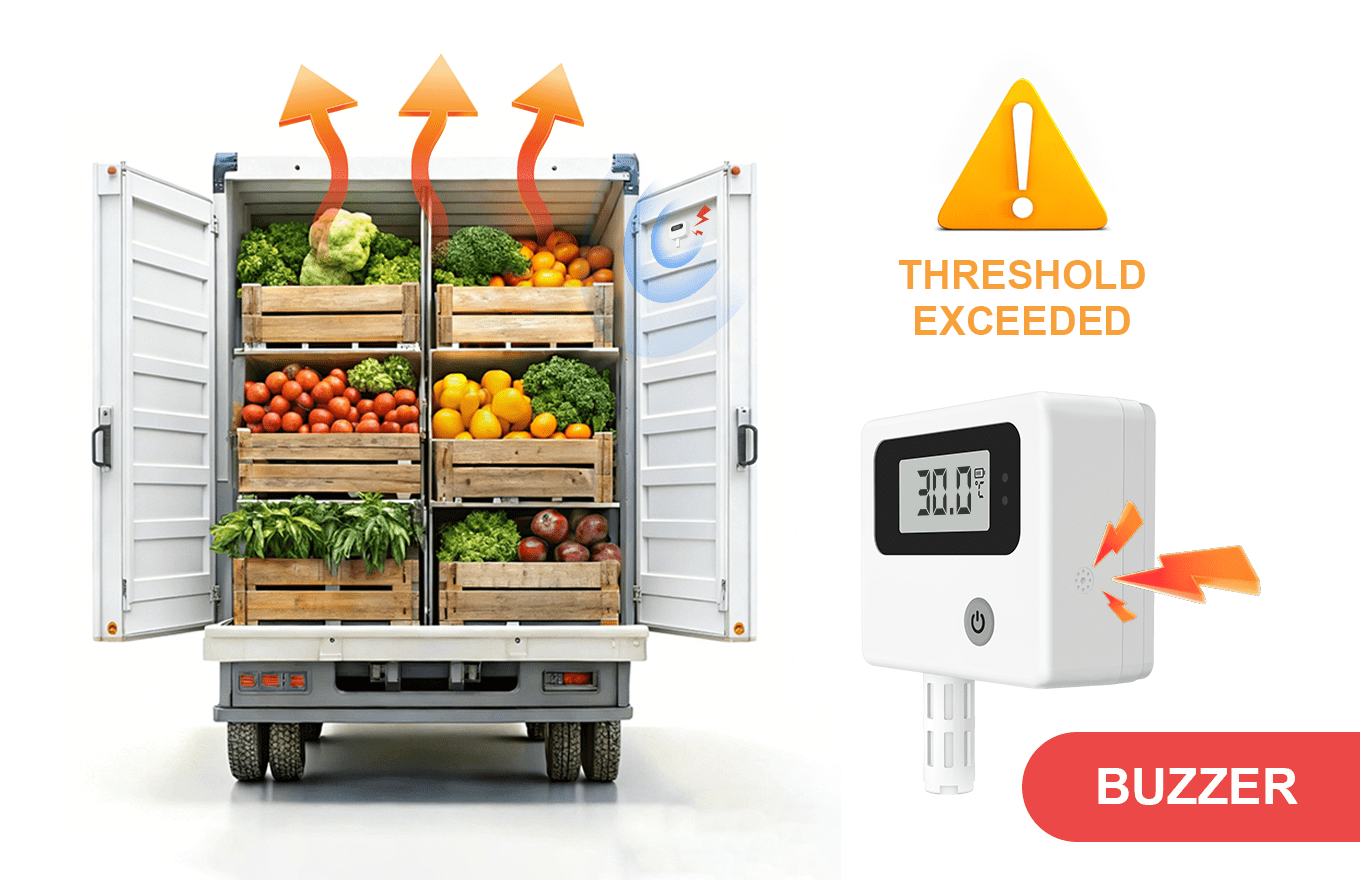

LED & Buzzer Alarms

Set your own thresholds to stay safe. When limits are crossed, the device will trigger a flashing LED and a loud buzzer to alert you immediately.

Customizable Probes

We offer flexible hardware options. You can choose the exact cable length and measurement range that fits your specific task.

Coded PHY for Long-Distance Connection

Supports Coded PHY technology to greatly extend the wireless range. You can stay connected even over long distances or through walls.

Fast Records Reading

Get your data in seconds! The S6 series support quick bulk reading via KGateway, syncing over 7,000 records in less than 7 seconds.

IP67 Waterproof

Built to handle tough environments. With an IP67 rating, the S6 series is fully protected against dust and water, making it perfect for wet or outdoor use.

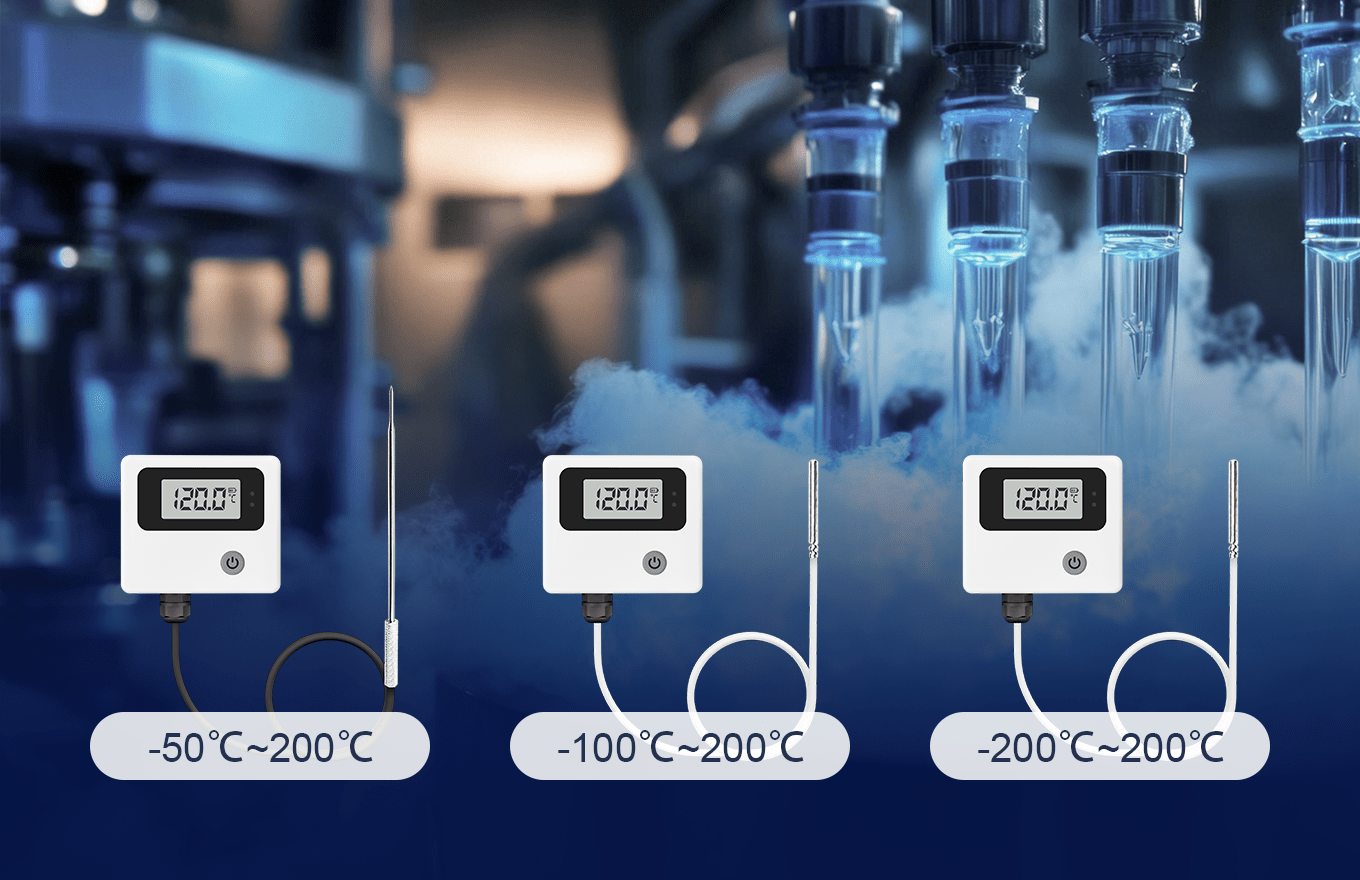

-200°C to +200°C Wide Temperature Range

From extreme cold to high heat, the S6 series covers it all. It works perfectly within a wide range of -200°C to +200°C.

Class A Accuracy

Our sensors provide very precise temperature monitoring, ensuring the safety of sensitive products like vaccines, medicine, and food.

>> DOWNLOAD

S6S series Temperature and Humidity Sensor
PT100, NTC, DS18B20 sensor optional

Support offline temp. & humidity records.
Data logger over 40000+ records
IP67 waterproof & Battery replaceable design
Compatible with iBeacon and Eddystone (UID, URL, TLM) and Kbeacon and KSensor at the same time.
All the parameters of this product can be modified via configure APP or KGateway.

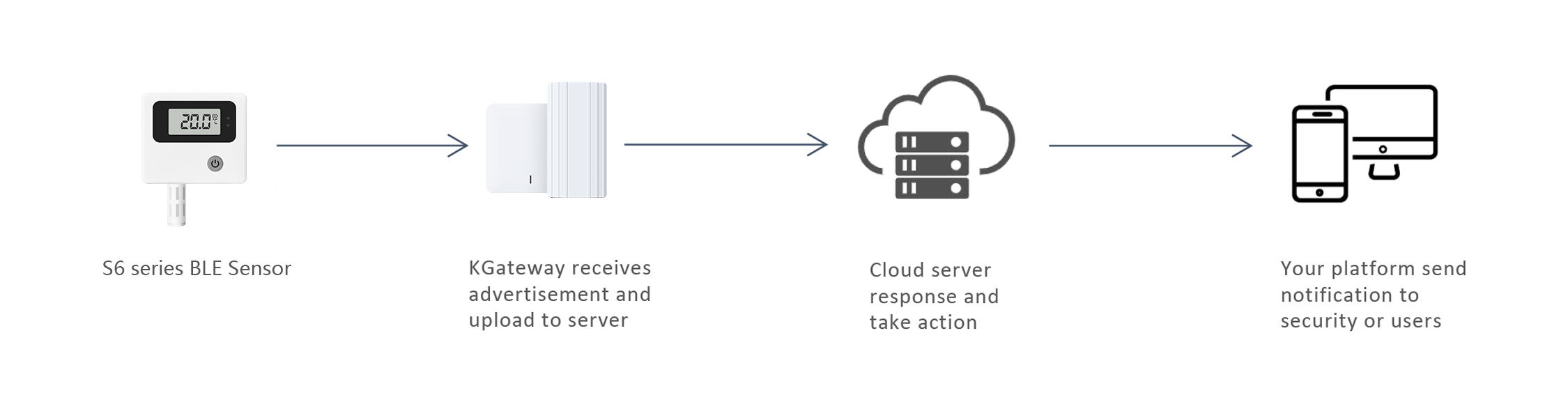

>> how it works

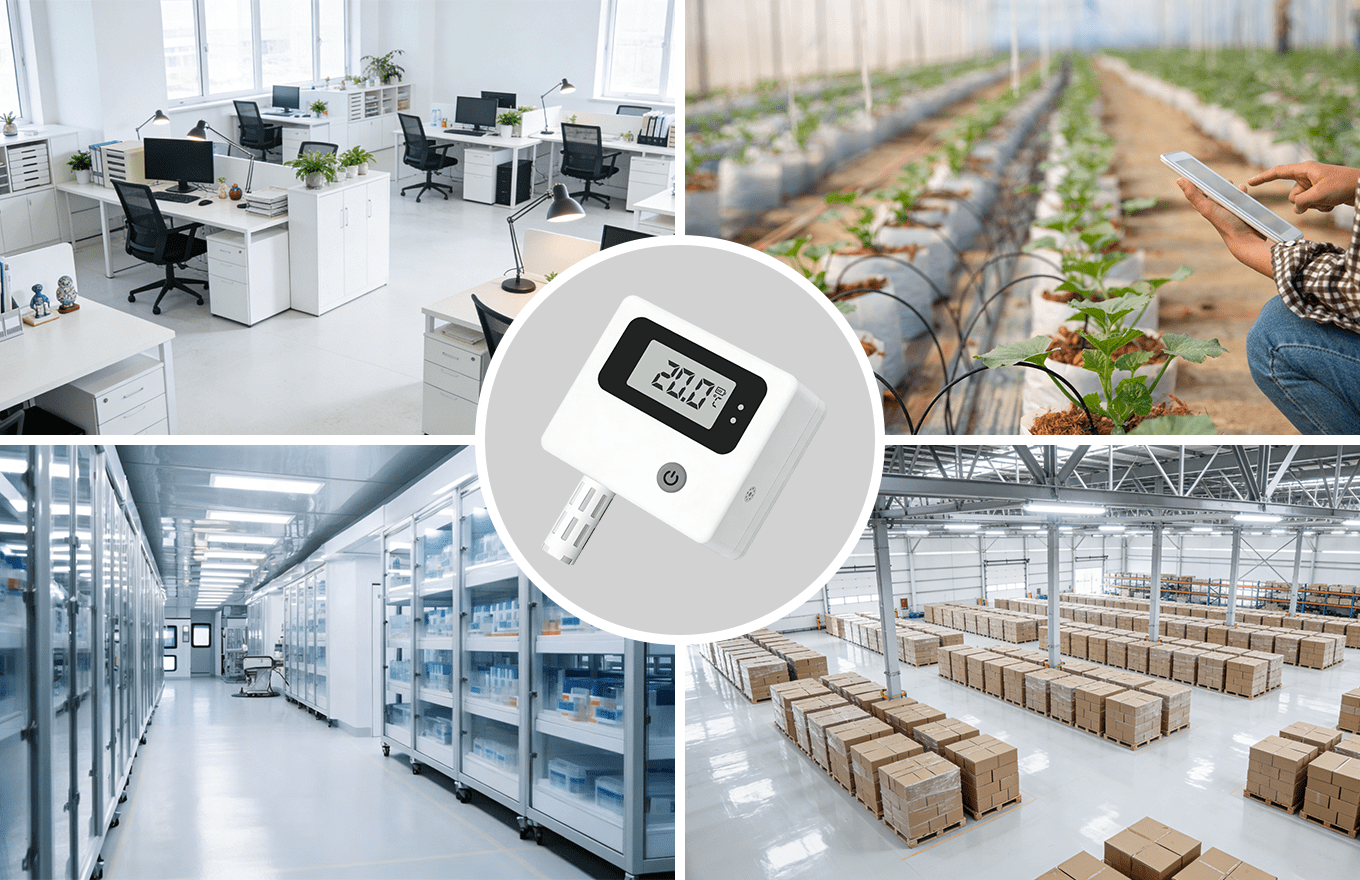

>> PRODUCT Application

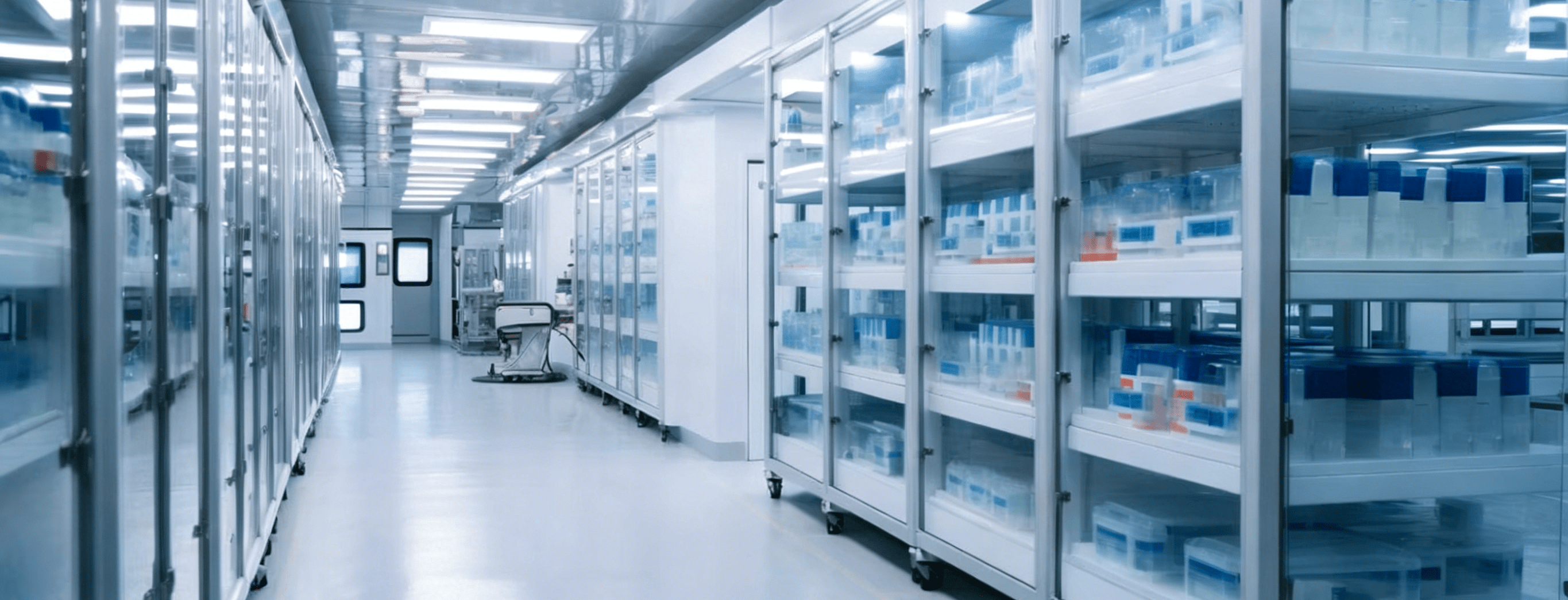

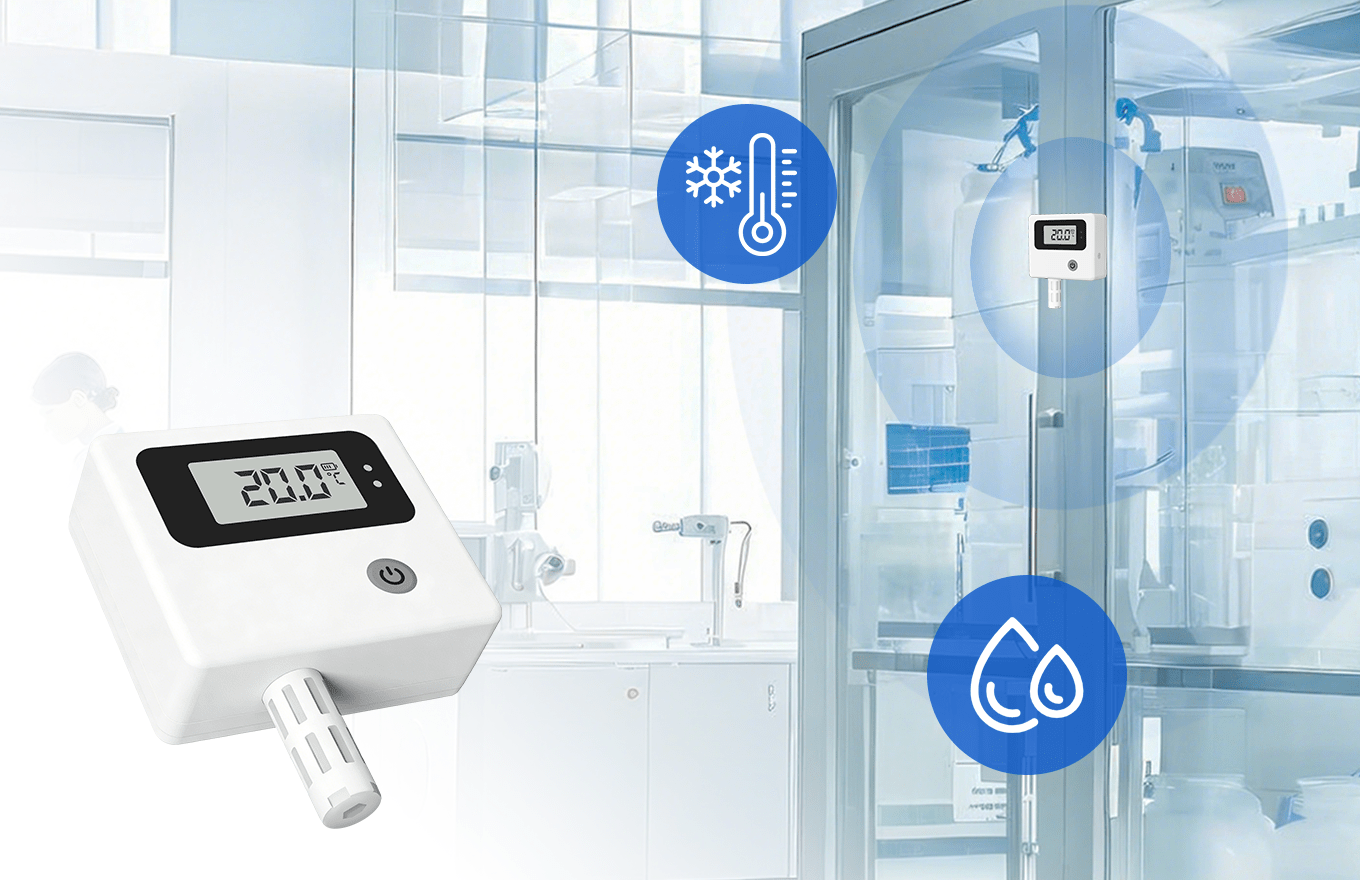

Temperature and humidity detection in laboratories and pharmacies

Smart Office and smart agriculture with T&H monitoring

Various extended probes for ultra low/high temperature monitoring

Cold chain transportation monitoring with buzzer and LED alarm when exceeds the configured threshold.

>> Specification

Main-body Specifications
Specifications
Broadcast Specification

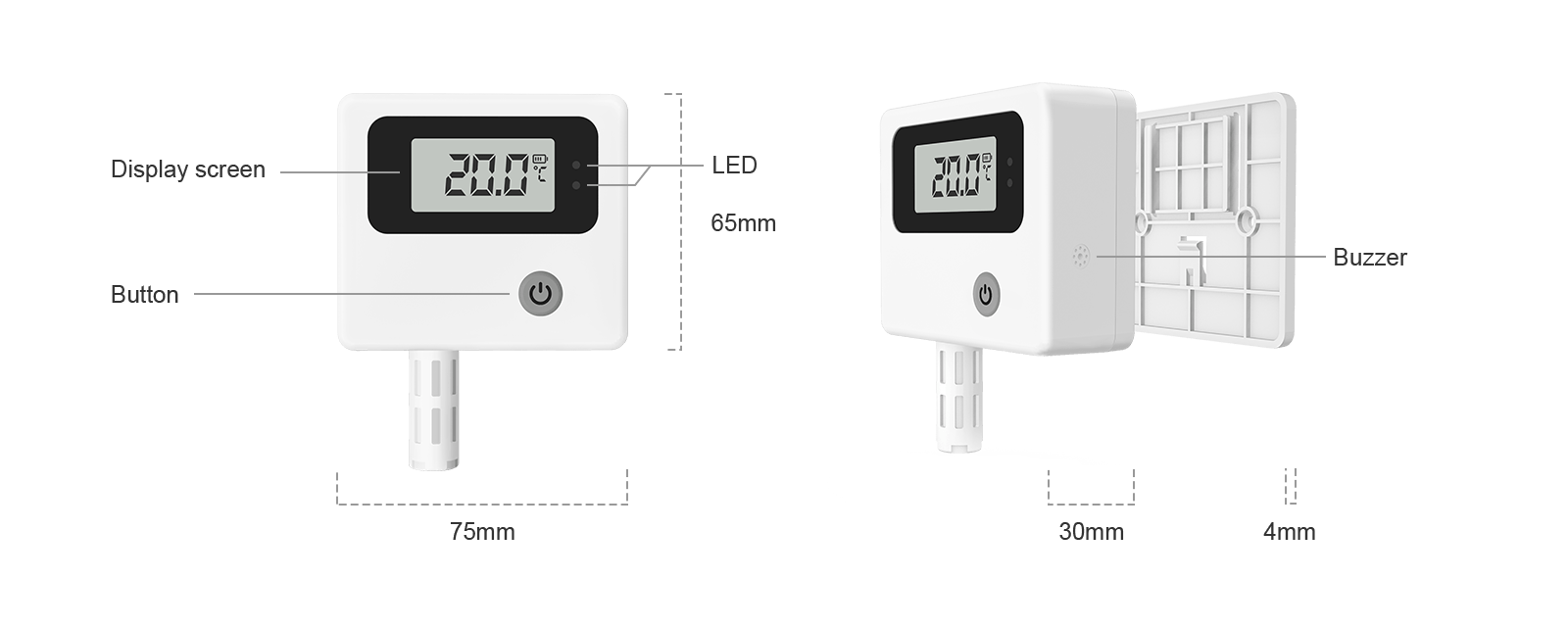

Body Size	75mm65mm 34mm	Button	Yes
Material	ABS	Configure APP	KBeaconPro
Housing Color	White	Sensor	• Temperature and Humidity • Accelerometer (Optional)
Weight	103g (with battery)	LED	Yes
Battery Capacity	4000mAh Lithium battery	Bluetooth Version	BLE 5.0/ BLE 4.x
Waterproof	IP67	OTA	Yes
Working Temperature	-30℃ ~+70℃	TX Power	-40~8dBm
Working Humidity	0 ~ 99% RH	Transmit Range	• 300 meters (8dBm on Legacy mode) • 600 meters (8dBm on PHY code mode)

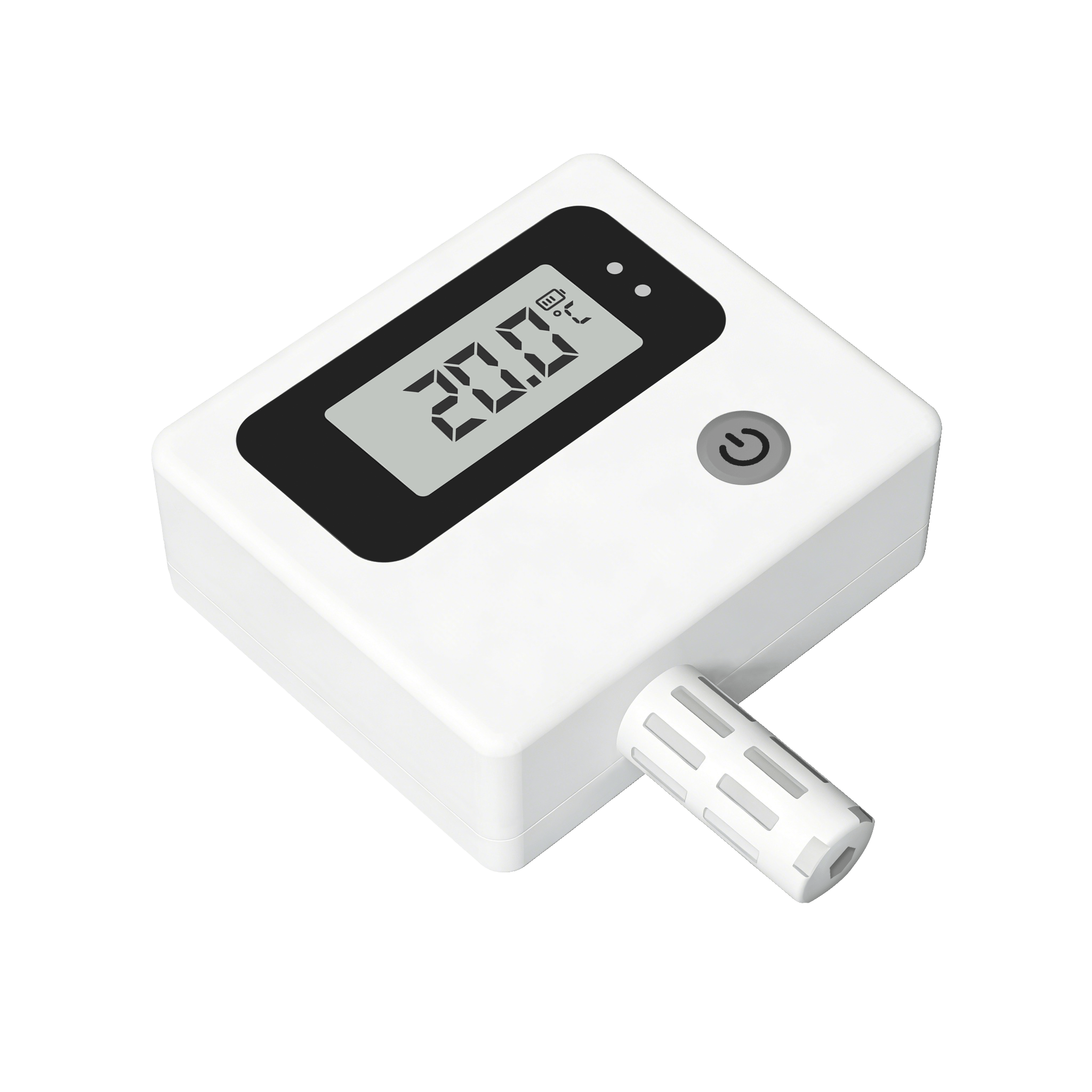

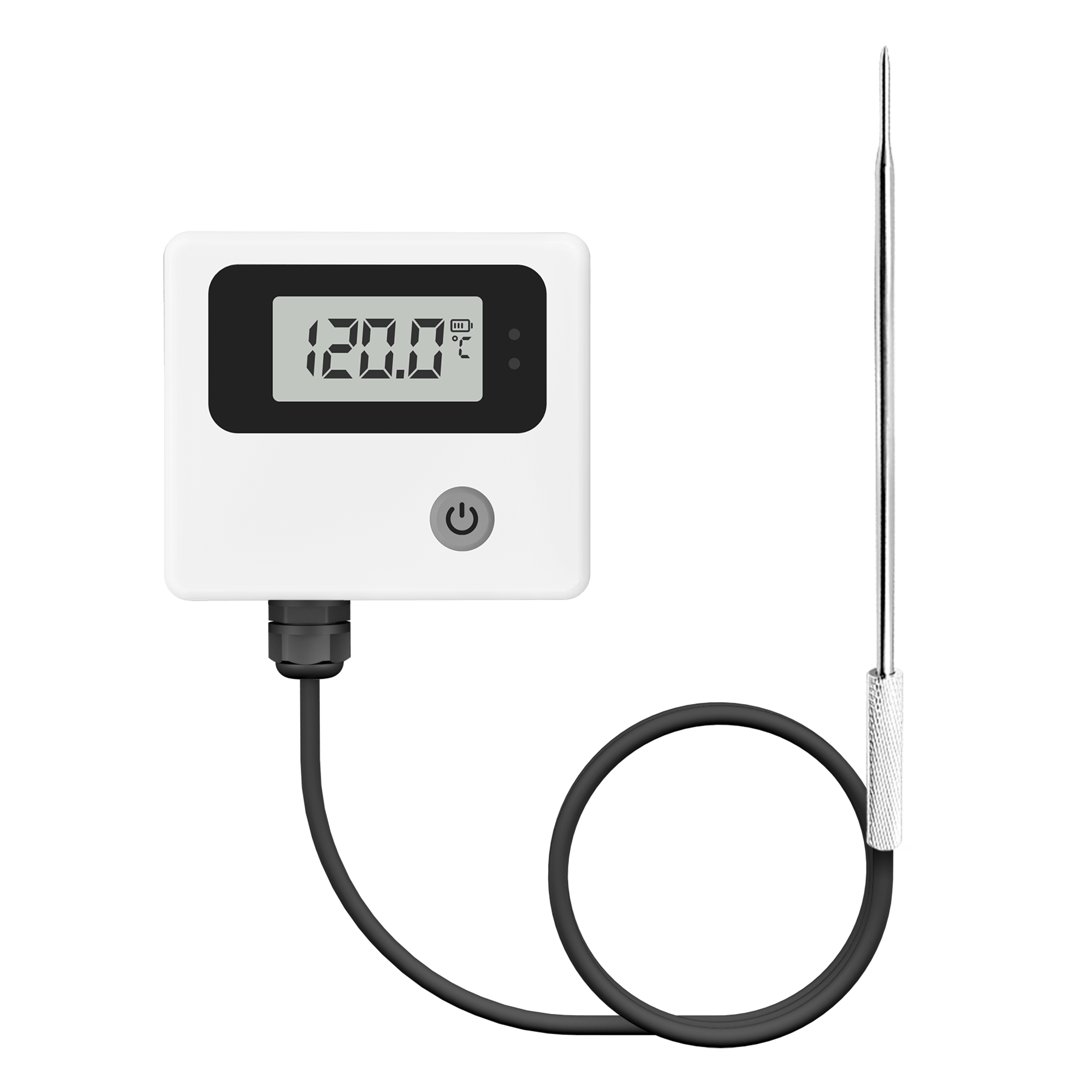

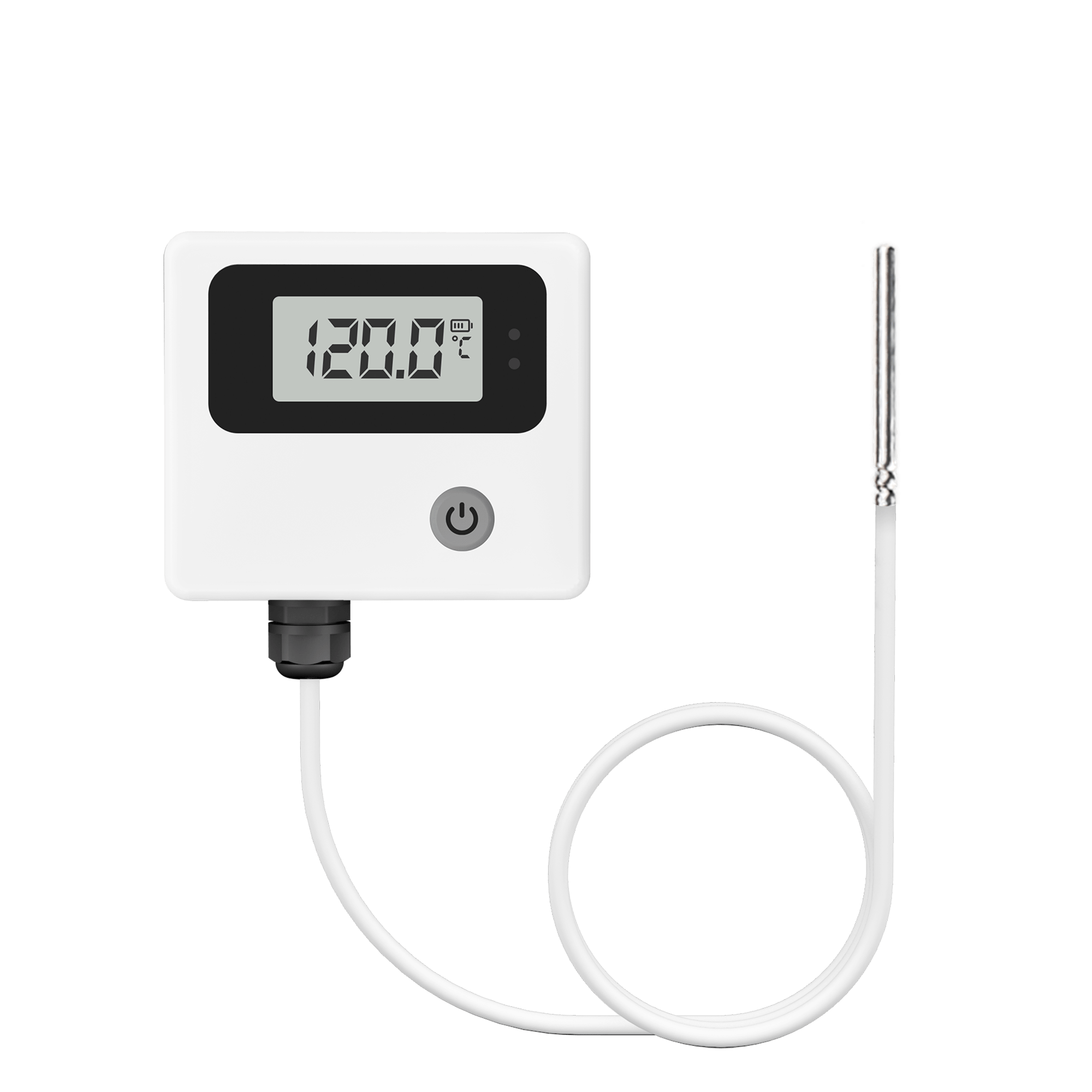

Model	S6h	S6t	S6pt100_1	S6pt100_2
Probe
Features	• PE Protective • Dustproof • Antifogging • Temp&Humidity Probe	• PE Protective Cover • Dustproof • Antifogging • Food grade probe	• PE Protective Cover • Dustproof • Antifogging • Class A Accuracy	• PE Protective Cover • Dustproof • Antifogging • Class A Accuracy
Temperature Range	Range: -30℃ ~ 70℃ Measure Accuracy: 0 ~ 60℃: ±0.4℃ -20 ~ 0℃: ±0.6℃ < -20 or > 60℃: ±0.8℃	Range: -50℃ ~ 200℃ Measure Accuracy: -30 ~ -20℃: ± 1.0℃ -20 ~ 0℃: ± 0.6℃ 0 ~ 40℃: ± 0.5℃ 40 ~ 70℃: ± 0.8℃ 70 ~ 100℃: ± 1.5℃ 100 ~150℃: ± 2.0℃	Range: -50℃ ~ 200℃ Measure Accuracy: -30 ~ -20℃: ± 1.0℃ -20 ~ 0℃: ± 0.6℃ 0 ~ 40℃: ± 0.5℃ 40 ~ 70℃: ± 0.8℃ 70 ~ 100℃: ± 1.5℃ 100 ~150℃: ± 2.0℃	Range: -200℃ ~ 200℃ Measure Accuracy: ±0.5℃ (-60 ~ 130℃) ±1℃ (-120 ~ 180℃) ±1.5℃ (other ranges)
Humidity Range	Range: 0~100% Measure Accuracy: 0 ~ 80℃: ±4% ≤0 or ≥ 80℃: ±6%	N/A	N/A	N/A
Trigger Alarm	Buzzer and LED alarm once exceed the threshold	Buzzer and LED alarm once exceed the threshold	Buzzer and LED alarm once exceed the threshold	Buzzer and LED alarm once exceed the threshold
Battery Life	8 Years	6 Years	6 Years	6 Years
Probe Type	Digital temperature & humidity sensor	NTC	PT100	PT100
Probe Waterproof	IP65	IP67	IP67	IP67
Cable Length	N/A	1.5m	1.5m	1.5m

Type(channel)	Item	Default Settings
KSensor (on)	• Battery level • Temperature • Humidity	Actual measurements
iBeacon (off)	• UUID • Major/Minor • Measured power	Not broadcast by default
Eddystone UID/URL/TLM (off)	• Instance ID • Namespace ID • Measured power	Not broadcast by default
System	• MAC Address • Model ID • Battery Percent • Software Version	Assigned at factory S6h:66 S6t:67 S6C:69 S6pt100_1: 68 S6pt100_2:68 0%~ 100% 6.x
Password	Password	0000000000000000(default)
Connectable Mode	Connectable or not	Yes
