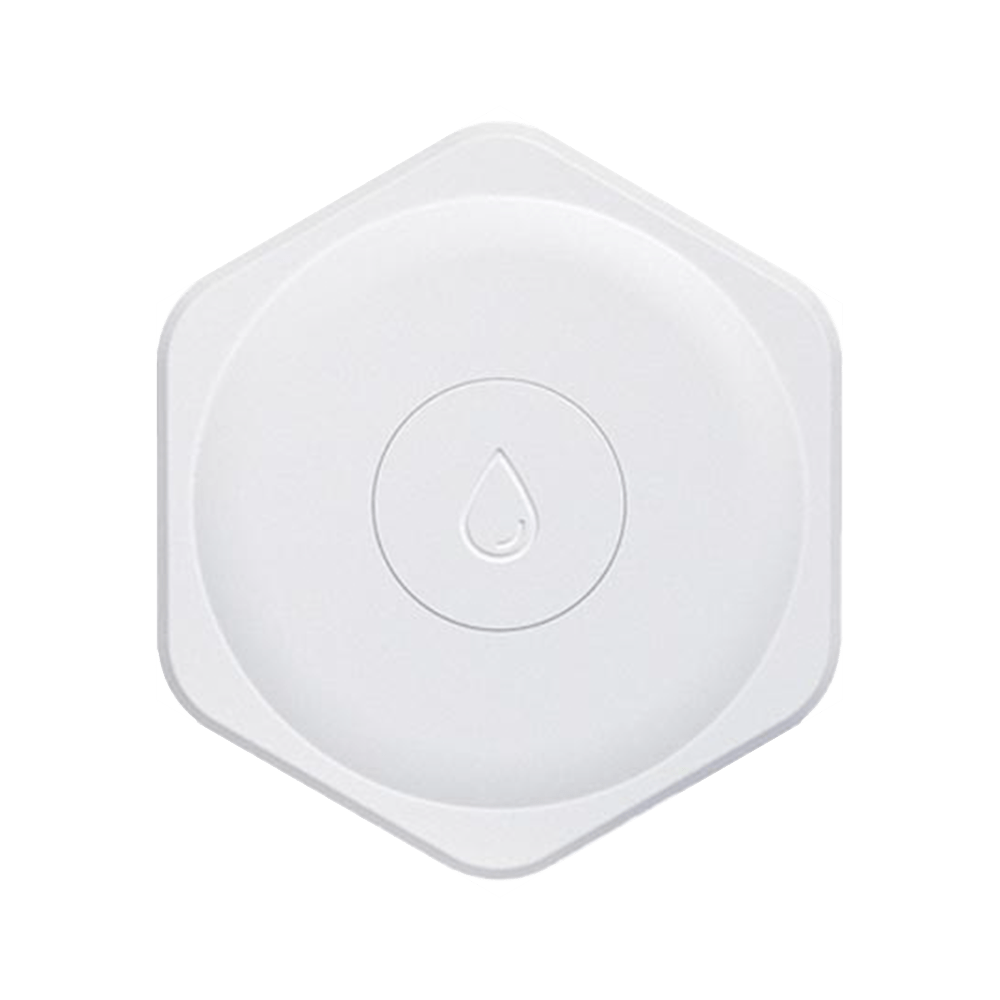

S4 Water Detector Sensor

S4 Beacon is a small water sensor Beacon with ultra low power chipset nRF52 series and Bluetooth® LE 5.0 technology .

S4 has built-in water detection sensor, it can detect whether it is immersed in water in real time. When water immersion is detected, it will send alert to the system. It supports manual adjustment of the water immersion detection height to prevent false alerts caused by a small amount of water such as mopping the floor.

S4 water sensor can be used in places like hotels, nursing homes, industrial manufacturing places, etc.

IP65 Waterproof

Accelerometer

Small Size

2 Years Battery Life

100M

LED Flashing

Battery Replaceable

nRF52 Series

DESCRIPTION

  • High-precision water sensor
  • Support trigger alert function
  • 2 years lifetime and battery is replaceable
  • With built-in accelerometer and temperature sensor
  • Small size, compact design
  • SDK or Library Provided

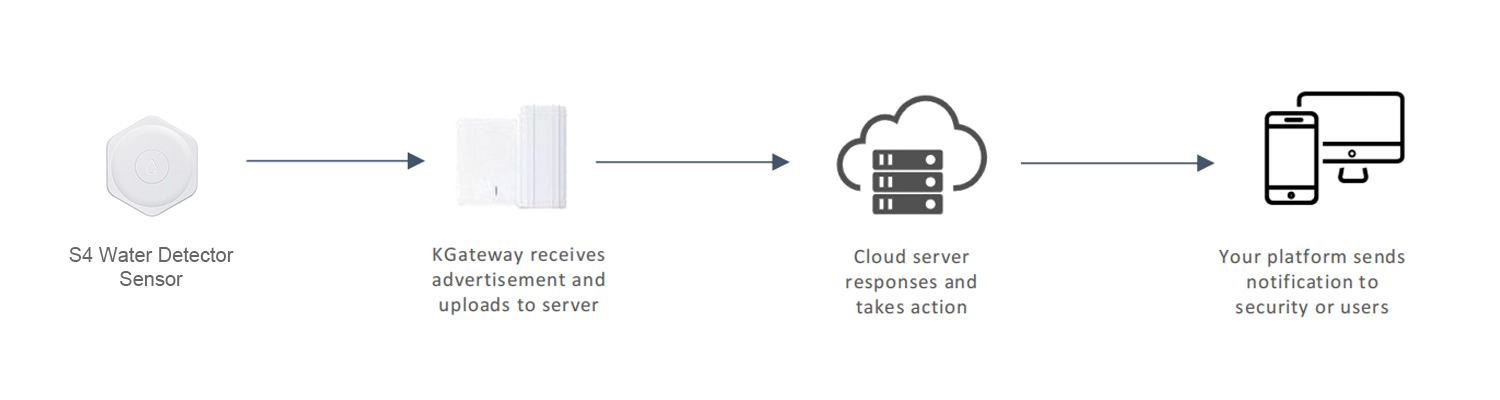

HOW IT WORK

Once S4 water sensor detects water immersion, Bluetooth advertisement will be triggered.

The gateway receive the advertisement and upload to cloud server, the cloud server response and take actions accordingly, for example, send notification to management center.

PRODUCT APPLICATION

Water Leak Detection
The S4 Water Leakage Detector can be placed in kitchens, bathrooms, or near water pipes to detect water leaks in real time. Once water is detected, it sends a BLE alert to a nearby gateway, allowing the connected monitoring system to notify users and help prevent potential water damage.
Warehouse Water Leakage Monitoring
Water leaks in warehouses can damage stored goods and cause costly losses. The S4 can be installed in leak-prone areas to monitor water accumulation. When a leak is detected, an alert is transmitted through a BLE gateway to the management system, enabling staff to take timely action and protect valuable inventory.
Server Room & Data Center Protection
Water leaks from air conditioning systems, cooling pipes, or other sources can pose serious risks to sensitive IT equipment. The S4 provides continuous water leakage monitoring in server rooms and data centers. When water is detected, it triggers a BLE alert that can be forwarded to the monitoring system, helping maintenance teams respond quickly and minimize equipment damage and downtime.

DOWNLOAD

Compatible with iBeacon and Eddystone (UID, URL, TLM) and KSensor at the same time.
All the parameters of this product can be modified via configure APP or KGateway.

SPECIFICATION

Size

50mm*50mm*18mm

Material

ABS

Color

White(Other colors can be customized)

Weight

26g (with battery)

Battery

CR2032 battery 210mAh(replaceable)

Battery life

2 years (Base on Broadcast Interval 1 second and TX power 0dBm)

Transmit range

100 meters in open area

Waterproof

IP65

Chipset

Nordic nRF52 series

BLE version

BLE4.0/BLE5.0

Protocol

iBeacon/Eddystone/KSensor

OTA

Yes

Button

1 button

LED

1 LED

Sensor

Water Sensor

Buzzer

N/A

Working temperature

-20℃ ~+60℃ (Default)

-30℃ ~+70℃ (Optional)

Accessory

N/A

Item

Default setting

Remark

Device Name

KBPro_XXXXXX

XXXXXX (ID) is a digit number

Adv Interval

1000ms

Configurable range: 100~10000ms

Tx Power

0dBm

Configurable range:-40dBm~4dBm

Measure Power

-59dBm

RSSI@1m

Connectable Mode

Yes

'Yes' means connectable,

'No' means unconnectable

Beacon Type

KSensor

Configurable Beacon Types:

iBeacon, URL, UID, TLM, KSensor, System

Trigger Command

Alert

UUID

7777772E-6B6B-6D63-6E2E-636F6D000001

Major

Major and Minor combination is unique

Minor

Major and Minor combination is unique

Namespace ID

0x00000000000000000001

Instance ID

0x000000000001

Eddystone URL

www.kkmcn.com

Password

0000000000000000
